TE Connectivity
5749639-1
HD-22 D-Sub Connector, 62 Pos, Male, Right Angle, Through Hole, Gold/Tin Contacts
High-density D-Subminiature connector, male, 62 positions, 3 rows, right-angle through-hole mount. Features gold and tin plated bronze signal contacts with a 0.125-inch post length, rated for 2A current and 250V AC. Metal shell with nickel plating and black housing, offering mating alignment, connector lock, and retention. Operating temperature range of -55°C to 105°C, with UL and RoHS compliance.
PackageMetal
Voltage Rating125V
Current Rating2A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 5749639-1 technical specifications.
General
Approvals
UL
Body Material
Metal
Body Plating
Nickel
Package/Case
Metal
Color
Black
Contact Material
Bronze
Contact Plating
Gold, Tin
Contact Post Length
0.125inch
Contact Type
Signal
Current Rating
2A
Depth
21.06mm
Flammability Rating
UL94 V-0
Gender
Male
Height
12.5mm
Housing Color
Black
Length
69.4mm
Material
Metal
Mating Alignment
Yes (With)
Mating Connector Lock
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Max Supply Voltage (AC)
250V
Max Voltage Rating (AC)
250V
Mount
Through Hole
Number of Contacts
62
Number of Ports
1
Number of Positions
62
Number of Rows
3
Orientation
Right Angle
Package Quantity
40
Packaging
Tray
PCB Mount Alignment
Yes (With)
PCB Mount Retention
With
PCB Mounting Orientation
Right Angle
PCB Thickness
1.57mm
Pitch
2.4mm
Plating
Nickel
Preloaded
Yes
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
AMPLIMITE HD-22
Shell Material
Steel
Shell Size
4
Termination
Solder
Voltage Rating
125V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 5749639-1 Datasheet
Download the complete datasheet for TE Connectivity 5749639-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

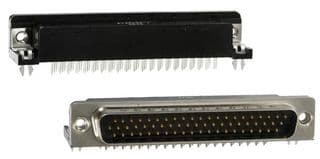

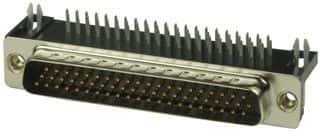

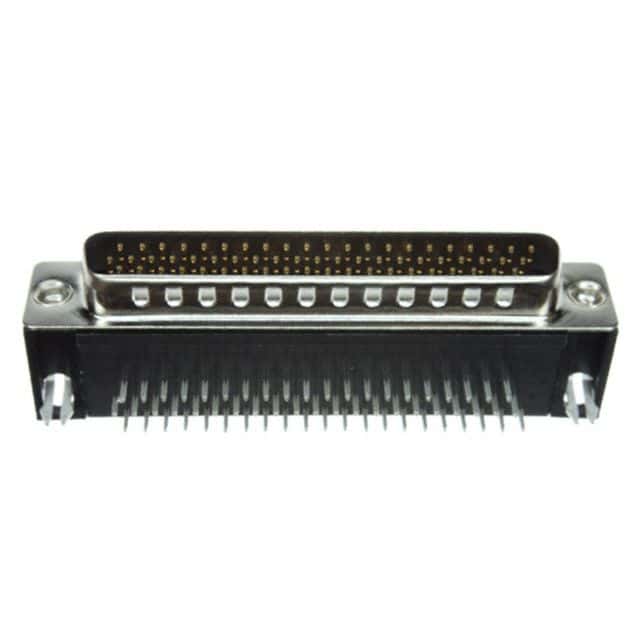

Product Images
