68-position, 4-row signal connector with a straight, vertical PCB mount orientation. Features a steel shell and body, with bronze contacts plated in gold and tin for reliable signal transmission. Thermoplastic dielectric material and UL94 V-0 flammability rating ensure durability. Operates within a -55°C to 105°C temperature range and supports up to 30V AC. Includes mating connector lock and retention for secure connections.
Voltage Rating30V
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 5749721-7 technical specifications.
General
Body Material
Steel
Circuit Application
Signal
Color
Black
Contact Material
Bronze
Contact Plating
Gold, Tin
Contact Post Length
0.125inch
Contact Type
Signal
Depth
10.31mm
Dielectric Material
Thermoplastic
ELV
Compliant
Features
Shielded
Flammability Rating
UL94 V-0
Gender
Female
Housing Color
Black
Lead Free
Lead Free
Lead Length
3.175mm
Length
63.88mm
Mating Alignment
No (Without)
Mating Connector Lock
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
30V
Mount
Through Hole
Number of Contacts
68
Number of Ports
1
Number of Positions
68
Number of Rows
4
Orientation
Straight
Package Quantity
8
Packaging
Rail/Tube
PCB Mount Alignment
No (Without)
PCB Mount Retention
With
PCB Mounting Orientation
Vertical
Pitch
0.05inch
Plating
Copper
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Row Spacing
2.54mm
Sealable
No (Without)
Series
AMPLIMITE .050 III
Shell Material
Steel
Shielding
Shielded
Termination
Solder
Voltage Rating
30V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 5749721-7 Datasheet
Download the complete datasheet for TE Connectivity 5749721-7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

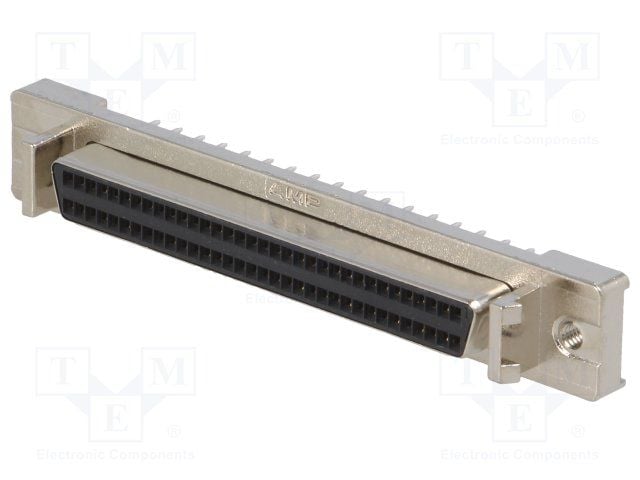

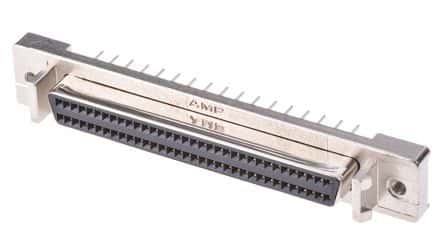

Product Images
