Right-angle D-subminiature plug connector with 15 signal contacts on 3 rows. Features gold and tin plated bronze contacts with a 2A current rating and 125V voltage rating. Metal shell and body construction with black housing, suitable for through-hole mounting on PCBs up to 1.57mm thick. Operates within a -55°C to 105°C temperature range and includes mating connector lock.
PackageMetal
Voltage Rating125V
Current Rating2A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 5749768-1 technical specifications.
General
| Approvals | UL |
| Body Material | Metal |
| Package/Case | Metal |
| Color | Black |
| Contact Material | Bronze |
| Contact Plating | Gold, Tin |
| Contact Post Length | 0.125inch |
| Contact Type | Signal |
| Current Rating | 2A |
| Depth | 20.8mm |
| Dielectric Material | PBT |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | Black |
| Lead Length | 3.175mm |
| Length | 30.81mm |
| Material | Metal |
| Mating Connector Lock | Yes (With) |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage (AC) | 250V |
| Max Voltage Rating (AC) | 250V |
| Mount | Through Hole |
| Number of Contacts | 15 |
| Number of Ports | 1 |
| Number of Positions | 15 |
| Number of Rows | 3 |
| Orientation | Right Angle |
| Package Quantity | 100 |
| Packaging | Box |
| PCB Mount Retention | With |
| PCB Mounting Orientation | Right Angle |
| PCB Thickness | 1.57mm |
| Pitch | 2.29mm |
| Plating | Nickel |
| Preloaded | Yes |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | AMPLIMITE HD-22 |
| Shell Material | Steel |
| Shell Size | 1 |
| Termination | Solder |
| Voltage Rating | 125V |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 5749768-1 Datasheet
Download the complete datasheet for TE Connectivity 5749768-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

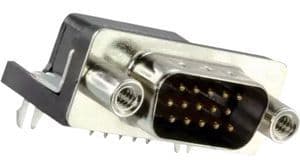

Product Images
