TE CONNECTIVITY

5749771-1

Datasheet

HD-22 D-Sub Connector, 44 Pos, Male, RA, Solder, 2A, 125V

TE Connectivity

5749771-1

Name: 5749771-1 TE Connectivity
Brand: TE Connectivity
SKU: 5749771-1

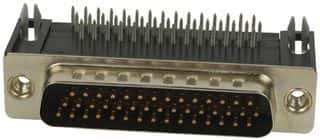

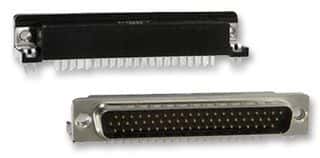

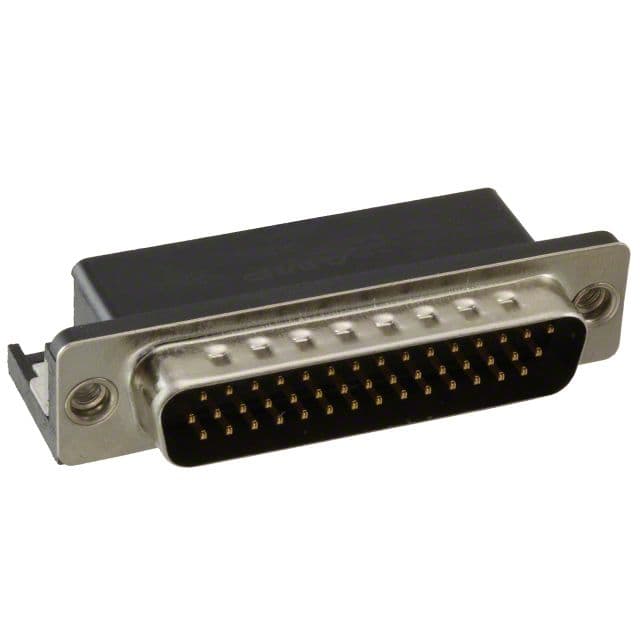

HD-22 D-Sub Connector, 44 Pos, Male, RA, Solder, 2A, 125V

High-density D-Subminiature connector, male, 44 positions, 3 rows, right-angle through-hole mount. Features gold-plated bronze signal contacts with tin plating, 2A current rating, and 125V voltage rating. Metal shell construction with black housing, PBT dielectric, and UL94 V-0 flammability rating. Includes mating alignment, locking, and retention features. RoHS compliant.

PackageMetal

Voltage Rating125V

Current Rating2A

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 5749771-1 technical specifications.

General

Approvals	UL, CSA
Body Material	Metal
Package/Case	Metal
Color	Black
Contact Material	Bronze
Contact Plating	Gold, Tin
Contact Post Length	0.125inch
Contact Type	Signal
Current Rating	2A
Depth	21.06mm
Dielectric Material	PBT
Flammability Rating	UL94 V-0
Gender	Male
Housing Color	Black
Length	53.05mm
Mating Alignment	Yes (With)
Mating Connector Lock	Yes (With)
Mating Retention	Yes (With)
Max Operating Temperature	105°C
Min Operating Temperature	-55°C
Max Supply Voltage (AC)	250V
Max Voltage Rating (AC)	250V
Mount	Through Hole
Number of Contacts	44
Number of Ports	1
Number of Positions	44
Number of Rows	3
Orientation	Right Angle
Package Quantity	50
Packaging	Box
PCB Mount Retention	With
PCB Mounting Orientation	Right Angle
PCB Thickness	1.57mm
Pitch	2.29mm
Plating	Nickel
Preloaded	Yes
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Sealable	No (Without)
Series	AMPLIMITE HD-22
Shell Material	Steel
Shell Size	3
Termination	Solder
Voltage Rating	125V
Width	12.5mm
