Shielded, straight, through-hole modular connector with 50 signal contacts and 4 rows, featuring gold and tin plated bronze contacts with a 0.05-inch pitch. This vertical PCB mount component offers a 1A current rating and 30V voltage rating, with a steel shell and UL94 V-0 flammability rating. Operating temperature range is -55°C to 105°C, with lead-free and RoHS compliance.
Voltage Rating30V
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 5786555-5 technical specifications.
General
Circuit Application
Signal
Color
Black
Contact Material
Bronze
Contact Plating
Gold, Tin
Contact Post Length
0.173inch
Contact Type
Signal
Current Rating
1A
Depth
10.31mm
ELV
Compliant
Features
Shielded
Flammability Rating
UL94 V-0
Housing Color
Black
Lead Free
Lead Free
Lead Length
4.3942mm
Length
52.45mm
Mating Alignment
No (Without)
Mating Connector Lock
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Max Supply Voltage (AC)
30V
Mount
Through Hole
Number of Contacts
50
Number of Ports
1
Number of Positions
50
Number of Rows
4
Orientation
Straight
Package Quantity
10
Packaging
Rail/Tube
PCB Mount Alignment
No (Without)
PCB Mount Retention
With
PCB Mounting Orientation
Vertical
PCB Thickness
2.36mm
Pitch
0.05inch
Plating
Copper
Radiation Hardening
No
RoHS Compliant
Yes
Row Spacing
2.54mm
Sealable
No (Without)
Series
AMPLIMITE .050 III
Shell Material
Steel
Shielding
Shielded
Termination
Solder
Voltage Rating
30V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 5786555-5 Datasheet
Download the complete datasheet for TE Connectivity 5786555-5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

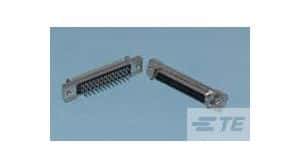

Product Images
