TE CONNECTIVITY

5787745-1

Datasheet

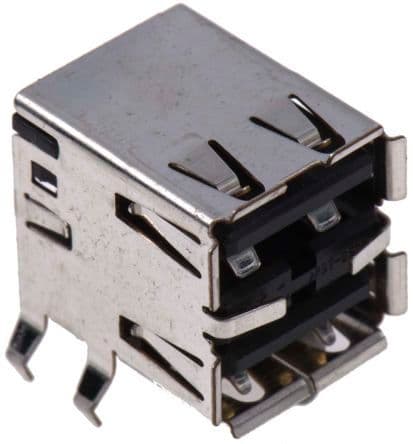

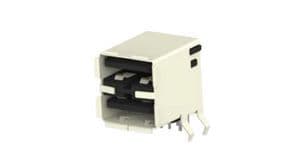

USB 2.0 Type A RCP 2 Port RA Thru-Hole 8 Pos Female Connector

TE Connectivity

5787745-1

Name: 5787745-1 TE Connectivity
Brand: TE Connectivity
SKU: 5787745-1

USB 2.0 Type A RCP 2 Port RA Thru-Hole 8 Pos Female Connector

Right-angle, through-hole USB 2.0 Type A connector for cable-to-board applications. Features 8 contacts, 2 ports, and 8 positions with a 2.5mm pitch. Offers a 1A current rating, 30V voltage rating, and gold-plated copper alloy contacts. Operates from -67°C to 185°C with a 1500 mating cycle lifespan. Housing and insulation are black, with a UL94 V-0 flammability rating.

Voltage Rating30V

Current Rating1A

MountingThrough Hole, Horizontal, PCB

Quick Jump:

Technical Specifications

TE Connectivity 5787745-1 technical specifications.

General

Circuit Application	Signal
Color	Black
Connector System	Cable-to-Board
Contact Current Rating	1A
Contact Material	Copper Alloy
Contact Plating	Gold
Current Rating	1A
Depth	17.5mm
Flammability Rating	UL94 V-0
Gender	Female
Housing Color	Black
Insulation Color	Black
Length	14.63mm
Mating Cycles	1500
Max Operating Temperature	185°C
Min Operating Temperature	-67°C
Max Voltage Rating (AC)	30V
Mount	Through Hole, Horizontal, PCB
Number of Contacts	8
Number of Ports	2
Number of Positions	8
Orientation	Right Angle
Package Quantity	88
Packaging	Tray
PCB Thickness	1.57mm
Pitch	2.5mm
Plating	Bright, Tin
Plating Thickness	0.76um
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Tail Length	2.84mm
Termination	Through Hole
USB Standard	USB 2.0
Voltage Rating	30V
