5787956-1

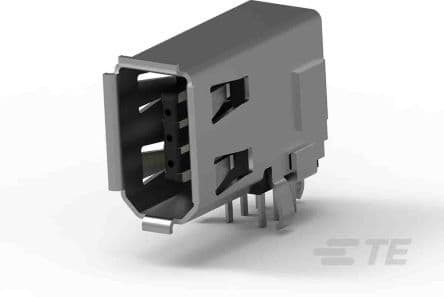

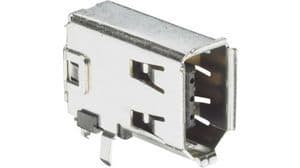

6 Pos 1.5A Receptacle, Right Angle, Through Hole, IEEE1394 Connector

6-position, 6-circuit IEEE 1394 receptacle socket assembly for signal applications. Features a right-angle, vertical through-hole mounting orientation with a 2mm pitch. Contacts are brass with gold plating, rated for 1.5A current and 30V voltage, with a mating cycle of 1500. The black housing and insulation are UL94 V-0 flammability rated, operating from -67°C to 185°C.

Voltage Rating30V

Current Rating1.5A

MountingThrough Hole, Vertical

Quick Jump:

Technical Specifications

TE Connectivity 5787956-1 technical specifications.

General

Circuit Application	Signal
Connector System	Cable-to-Board
Contact Current Rating	1.5A
Contact Material	Brass
Contact Plating	Gold
Current Rating	1.5A
Depth	18mm
Flammability Rating	UL94 V-0
Gender	Receptacle
Housing Color	Black
Insulation Color	Black
Length	8.5mm
Mating Cycles	1500
Max Operating Temperature	185°C
Min Operating Temperature	-67°C
Mount	Through Hole, Vertical
Number of Contacts	6
Number of Ports	1
Number of Positions	6
Orientation	Right Angle
Package Quantity	6075
Packaging	Tray
Pitch	2mm
Plating	Bright, Tin
Reach SVHC Compliant	No
RoHS Compliant	Yes
Tail Length	0.132inch
Termination	Through Hole
Voltage Rating	30V
