9 Pos D-Sub Connector, Female, RA, Solder, Gold/Tin, Metal Shell

TE Connectivity

5788796-1

Name: 5788796-1 TE Connectivity
Brand: TE Connectivity
SKU: 5788796-1

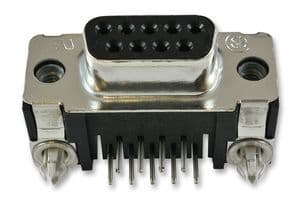

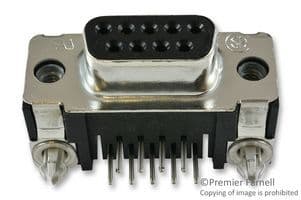

9 Pos D-Sub Connector, Female, RA, Solder, Gold/Tin, Metal Shell

Right-angle, 9-position D-subminiature connector with female contacts. Features gold and tin plated bronze contacts, a metal shell, and a black housing. Rated for 250V AC/DC, with a maximum operating temperature of 105°C. Through-hole mounting with solder termination and a 2.28mm pitch. RoHS compliant.

PackageMetal

Voltage Rating125V

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 5788796-1 technical specifications.

General

Approvals	UL
Body Material	Metal
Package/Case	Metal
Color	Black
Contact Gender	Female
Contact Material	Bronze
Contact Plating	Gold, Tin
Contact Post Length	0.125inch
Contact Type	Signal
Depth	18.8mm
Dielectric Material	Nylon
Flammability Rating	UL94 V-0
Gender	Female
High Temperature Housing	Yes
Housing Color	Black
Length	30.81mm
Material	Metal
Mating Alignment	Yes (With)
Mating Connector Lock	Yes (With)
Mating Retention	Yes (With)
Max Operating Temperature	105°C
Min Operating Temperature	-55°C
Max Supply Voltage (AC)	250V
Max Supply Voltage (DC)	250V
Max Voltage Rating (AC)	250V
Max Voltage Rating (DC)	250.25kV
Mount	Through Hole
Number of Contacts	9
Number of Ports	1
Number of Positions	9
Number of Rows	2
Orientation	Right Angle
Package Quantity	130
Packaging	Tray
PCB Mount Alignment	Yes (With)
PCB Mount Retention	With
PCB Mounting Orientation	Right Angle
PCB Thickness	1.57mm
Pitch	2.28mm
Plating	Tin
Preloaded	Yes
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Sealable	No (Without)
Series	AMPLIMITE HD-20
Shell Material	Steel
Shell Size	E
Termination	Solder
Voltage Rating	125V
Width	12.55mm
