9-position, 2-row female D-Subminiature connector with right-angle, through-hole mounting. Features copper alloy signal contacts with gold and tin plating, a metal body and shell (steel), and a black nylon dielectric. Rated for 125V, with a maximum operating temperature of 105°C. Includes mating alignment, mating connector lock, PCB mount alignment, and PCB mount retention. Compliant with UL, RoHS, and ELV standards.
PackageMetal
Voltage Rating125V
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 5788797-1 technical specifications.
General
Approvals
UL
Body Material
Metal
Package/Case
Metal
Color
Black
Contact Gender
Female
Contact Material
Copper Alloy
Contact Plating
Gold, Tin
Contact Post Length
0.125inch
Contact Type
Signal
Depth
18.8mm
Dielectric Material
Nylon
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Female
High Temperature Housing
Yes
Housing Color
Black
Lead Free
Lead Free
Length
30.81mm
Material
Metal
Mating Alignment
Yes (With)
Mating Connector Lock
Yes (With)
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Contacts
9
Number of Ports
1
Number of Positions
9
Number of Rows
2
Orientation
Right Angle
Package Quantity
130
Packaging
Tray
PCB Mount Alignment
Yes (With)
PCB Mount Retention
With
PCB Mounting Orientation
Right Angle
PCB Thickness
1.57mm
Pitch
2.74mm
Plating
Tin
Preloaded
Yes
Radiation Hardening
No
RoHS Compliant
Yes
Sealable
No (Without)
Series
AMPLIMITE HD-20
Shell Material
Steel
Shell Size
E
Termination
Solder
Voltage Rating
125V
Width
12.55mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 5788797-1 Datasheet
Download the complete datasheet for TE Connectivity 5788797-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

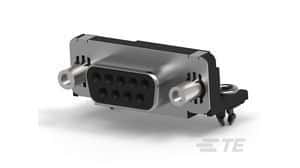

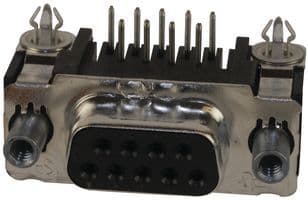

Product Images
