Shrouded Header, Right Angle, Through Hole mount, 11 positions, 1 row, 2.54mm pitch. Features male pin contacts with brass material, gold/tin/matte plating, and a 3A current rating. Offers 600V voltage rating, 105°C max operating temperature, and UL94 V-0 flammability. Compliant with RoHS and ELV standards.
Voltage Rating600V
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 6-103673-0 technical specifications.
General
Approvals
CSA
Backwall/Post Interruptions
No (Without)
Color
Black
Contact Current Rating
3A
Contact Gender
Male
Contact Material
Brass
Contact Mating Length
0.23inch
Contact Plating
Gold, Tin, Matte
Contact Retention
Yes (With)
Contact Shape
Square
Contact Type
Male Pin
Current Rating
3A
Depth
13.59mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Male
Height
13.59mm
Housing Color
Black
Lead Free
Lead Free
Length
1.2inch
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
105°C
Min Operating Temperature
-65°C
Mount
Through Hole
Number of Contacts
11
Number of Positions
11
Number of Rows
1
Orientation
Right Angle
Package Quantity
17
Packaging
Rail/Tube
PCB Mount Alignment
No (Without)
PCB Mount Retention
With
PCB Mounting Orientation
Right Angle
PCB Thickness
0.062inch
Pitch
2.54mm
Plating Thickness
2.54um
Radiation Hardening
No
RoHS Compliant
Yes
Row Spacing
0.1inch
Series
AMPMODU MTE
Strain Relief
No (Without)
Tail Length
3.3mm
Termination
Crimp
Voltage Rating
600V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 6-103673-0 Datasheet
Download the complete datasheet for TE Connectivity 6-103673-0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

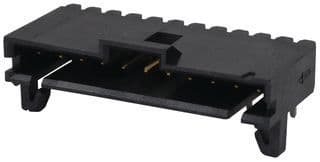

Product Images
