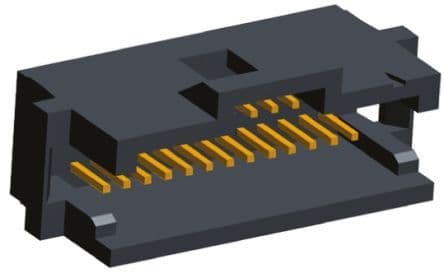

80 Pos 1.27mm Shrouded Header HDR, 1A, 30V, Gold/Tin, Thru-Hole

TE Connectivity

6-104068-6

Name: 6-104068-6 TE Connectivity
Brand: TE Connectivity
SKU: 6-104068-6

80 Pos 1.27mm Shrouded Header HDR, 1A, 30V, Gold/Tin, Thru-Hole

80 Position Shrouded Header, Straight Orientation, Through Hole Mount. Features a 1.27mm pitch and 2 rows for board-to-board connectivity. Contact current rating of 1A, with copper alloy contacts plated in gold and tin. Operating temperature range of -65°C to 105°C, with a voltage rating of 30V AC. UL94 V-0 flammability rating and lead-free construction.

Voltage Rating30V

Current Rating1A

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 6-104068-6 technical specifications.

General

Approvals	CSA
Board Standoff	Yes (With)
Color	Black
Contact Current Rating	1A
Contact Material	Copper Alloy
Contact Mating Length	0.1inch
Contact Plating	Gold, Tin
Contact Post Length	0.1inch
Contact Protection	Yes (With)
Contact Shape	Round
Contact Style	Pin
Current Rating	1A
Depth	8.73mm
Flammability Rating	UL94 V-0
Gasket	No (Without)
Housing Color	Black
Keyed	No
Lead Free	Lead Free
Lead Length	2.54mm
Length	56.99mm
Mating Alignment	Yes (With)
Mating Connector Lock	Yes (With)
Max Operating Temperature	105°C
Min Operating Temperature	-65°C
Max Voltage Rating (AC)	30V
Mount	Through Hole
Number of Contacts	80
Number of Positions	80
Number of Rows	2
Operating Supply Voltage	30V
Orientation	Straight
Package Quantity	9
Packaging	Rail/Tube
PCB Mount Retention	Without
PCB Mounting Orientation	Vertical
PCB Thickness	1.397mm
Pitch	0.05inch
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Row Spacing	2.54mm
Selectively Loaded	No (Without)
Series	AMPMODU System 50
Shrouded	Yes (With)
Stabilizers	No (Without)
Strain Relief	No (Without)
Termination	Through Hole
Voltage Rating	30V
Voltage Rating (AC)	30V
