Spring spade terminal for 14-18AWG wire, featuring a brass body and unplated brass contacts. This female, non-insulated terminal offers a straight orientation and insulated wire support. Designed for crimp termination, it has a maximum wire gauge of 14AWG and a minimum of 18AWG, with a wire/cable diameter of 3.56mm. The terminal measures 20.27mm in length, 7.49mm in width, and 7.51mm in depth, with a stud diameter of 4.82mm. Packaged on tape and reel, this component is RoHS compliant.
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 60775-1 technical specifications.
General
Body Material
Brass
Contact Material
Brass
Contact Plating
Unplated
Depth
7.51mm
ELV
Compliant
Gender
Female
Government Qualified
No
Heavy Duty
No
Insulated Wire Support
Yes
Insulation
Non-Insulated
Insulation Diameter
3.56mm
Lead Free
Lead Free
Length
20.27mm
Material
Brass
Mount
Free Hanging
Orientation
Straight
Package Quantity
12000
Packaging
Tape and Reel
Plating
Unplated
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Stud Diameter
4.82mm
Terminal Material
Brass
Termination
Crimp
Tongue Thickness
0.46inch
Width
7.49mm
Wire Gauge (Max)
14AWG
Wire Gauge (Min)
18AWG
Wire/Cable Diameter
3.56mm
Wire/Cable Gauge
18AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 60775-1 Datasheet
Download the complete datasheet for TE Connectivity 60775-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

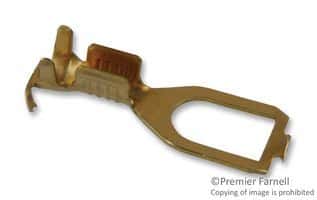

Product Images
