Shielded, right-angle RJ45 connector with 128 contacts and 16 ports, featuring 8 positions per port and a 2.54mm pitch. This modular Ethernet connector utilizes gold-plated bronze contacts for reliable connectivity. Designed for through-hole PCB mounting with a 1.57mm thickness, it operates within a temperature range of -40°C to 85°C and meets UL94 V-0 flammability standards. The connector is RoHS compliant and packaged in a tray.
Quick Jump:
Technical Specifications
TE Connectivity 6116317-4 technical specifications.
General
Color
Green
Contact Material
Bronze
Contact Plating
Gold
Direction
Up and Down
ELV
Compliant
Flammability Rating
UL94 V-0
Housing Color
Black
Keyed
No
Lead Free
Not Applicable
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Number of Contacts
128
Number of Ports
16
Number of Positions
8
Number of Rows
2
Orientation
Right Angle
Package Quantity
10
Packaging
Tray
PCB Mounting Orientation
Right Angle
PCB Thickness
1.57mm
Pitch
2.54mm
Radiation Hardening
No
RoHS Compliant
Yes
Shielding
Shielded
Tail Length
4.35mm
Termination
Press-Fit
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 6116317-4 Datasheet
Download the complete datasheet for TE Connectivity 6116317-4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

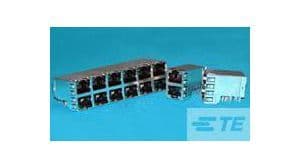

Product Images
