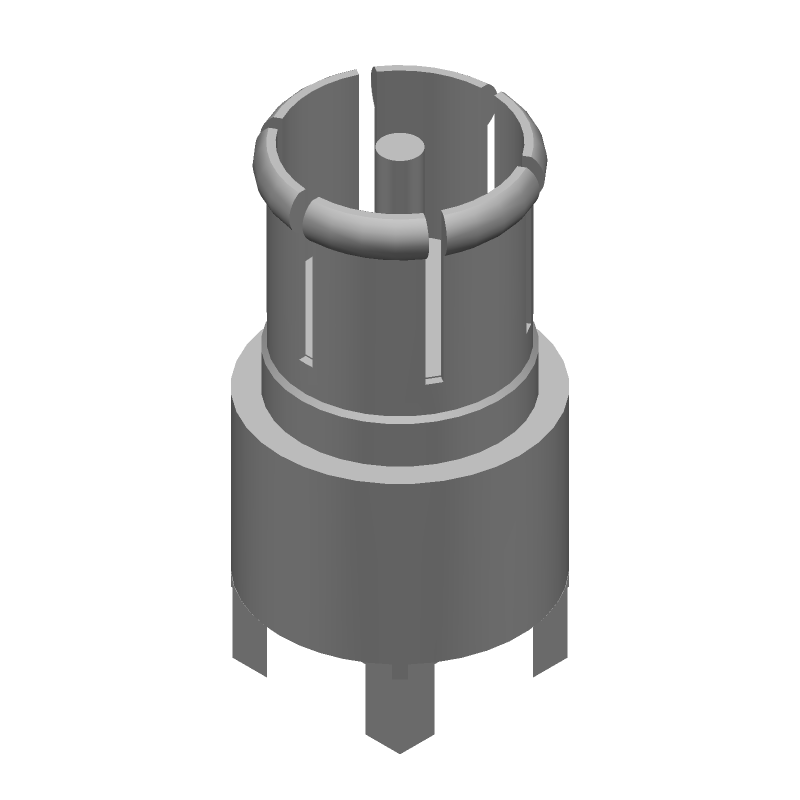

RF coaxial connector, BNC series, male gender, 75 Ohm impedance, and 2GHz maximum frequency. Features brass body with tin plating and brass contacts with gold plating. Utilizes PTFE dielectric and solder termination for through-hole mounting. Operates within a temperature range of -55°C to 85°C with a 500V voltage rating.
Frequency2GHz
Voltage Rating500V
MountingThrough Hole
PolarityStandard
Quick Jump:
Technical Specifications
TE Connectivity 6274360-1 technical specifications.
General
| Body Material | Brass |
| Body Plating | Tin |
| Contact Material | Brass |
| Contact Plating | Gold |
| Dielectric Material | PTFE |
| ELV | Compliant |
| Gender | Male |
| Impedance | 75R |
| Length | 14.73mm |
| Max Frequency | 2GHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Positions | 1 |
| Orientation | Vertical |
| Package Quantity | 300 |
| Packaging | Carton |
| PCB Mount Retention | Without |
| PCB Mounting Orientation | Vertical |
| Plating | Tin |
| Polarity | Standard |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Sealable | No (Without) |
| Series | BNC |
| Termination | Solder |
| Voltage Rating | 500V |
