62747-1

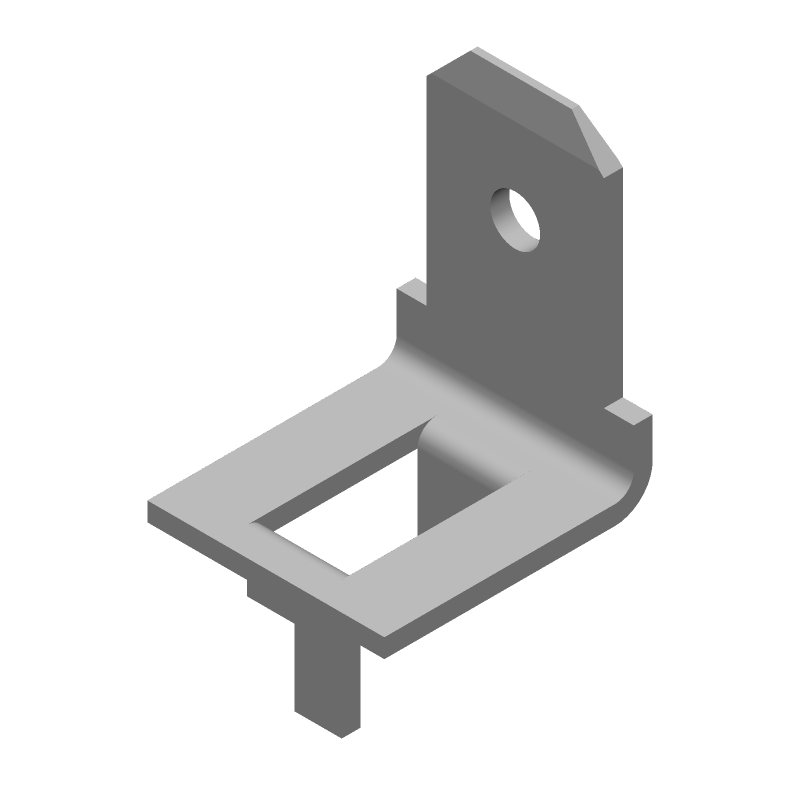

Brass Tab Terminal, 11.6mm, Tin Plated, Male, Non-Insulated

Male, non-insulated quick disconnect terminal featuring a brass body with tin plating. This component has a 4.75mm mating tab width and a 11.6mm tab length, with a 0.187 inch tab width and 0.02 inch tab thickness. Designed for through-hole mounting on PCBs up to 0.062 inches thick, it offers a 7.18mm depth and is supplied in tape and reel packaging. Material is brass with tin plating, and the product is RoHS and ELV compliant.

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 62747-1 technical specifications.

General

Body Material	Brass
Body Plating	Tin
Contact Material	Brass
Contact Plating	Tin
Depth	7.18mm
ELV	Compliant
Gender	Male
Insulated Wire Support	No
Insulation	Non-Insulated
Lead Free	Lead Free
Length	11.6mm
Material	Brass
Mating Tab Width	4.75mm
Mount	Through Hole
Package Quantity	1000
Packaging	Tape and Reel
PCB Thickness	0.062inch
Plating	Tin
Plating Thickness	3.81um
Radiation Hardening	No
RoHS Compliant	Yes
Tab Length	0.25inch
Tab Thickness	0.02inch
Tab Width	0.187inch
Termination	Tab
