TE CONNECTIVITY

63824-1

Datasheet

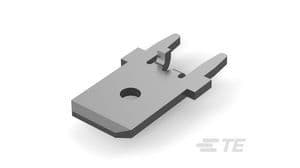

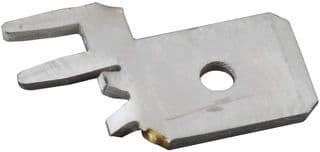

Brass PCB Tab Terminal, Tin Plated, 0.25" Tab Width, Straight

TE Connectivity

63824-1

Name: 63824-1 TE Connectivity
Brand: TE Connectivity
SKU: 63824-1

Brass PCB Tab Terminal, Tin Plated, 0.25" Tab Width, Straight

Male, non-insulated, straight PCB tab terminal with a 0.25-inch mating tab width. Features brass body and contact material, both plated with tin. Designed for through-hole mounting on PCBs up to 0.062-inch thick, with a tab thickness of 0.83mm and width of 6.35mm. Operates within a temperature range of -30°C to 110°C. RoHS compliant and ELV compliant.

Storage0.032inch

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 63824-1 technical specifications.

General

Body Material	Brass
Body Plating	Tin
Color	Silver
Contact Material	Brass
Contact Plating	Tin
Depth	7.92mm
ELV	Compliant
Gender	Male
Height	14.02mm
Insulation	Non-Insulated
Lead Free	Lead Free
Length	13.63mm
Material	Brass
Mating Tab Width	0.25inch
Max Operating Temperature	110°C
Min Operating Temperature	-30°C
Mount	Through Hole
Orientation	Straight
Package Quantity	10000
Packaging	Tape and Reel
PCB Thickness	0.062inch
Plating	Tin
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Series	Faston
Size	0.032inch
Tab Thickness	0.83mm
Tab Width	6.35mm
Terminal Material	Brass
Termination	Tab
