This 5-position, 1-row male pin header is designed for wire-to-board applications with a 2.54mm pitch. Featuring straight square copper alloy contacts with tin plating and a 5A current rating, it mounts vertically via through-hole termination. The header operates within a temperature range of -67°C to 221°C and has a maximum voltage rating of 250V AC. Its natural colored housing is UL94 V-0 flammability rated and RoHS compliant.
Voltage Rating250V
Current Rating5A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 640454-5 technical specifications.
General
Approvals
CSA
Backwall/Post Interruptions
No (Without)
Color
Natural, Beige
Connector System
Wire-to-Board
Contact Current Rating
5A
Contact Gender
Male
Contact Material
Copper Alloy
Contact Mating Length
7.49mm
Contact Plating
Tin
Contact Post Length
3.56mm
Contact Retention
No (Without)
Contact Shape
Square
Contact Style
Straight
Contact Type
Male Pin
Current Rating
5A
Depth
5.72mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Male
Height
7.75mm
Housing Color
Natural
Lead Free
Lead Free
Lead Pitch
2.54mm
Length
12.7mm
Mating Alignment
No (Without)
Mating Retention
No (Without)
Max Operating Temperature
221°C
Min Operating Temperature
-67°C
Max Voltage Rating (AC)
250V
Mount
Through Hole
Number of Contacts
5
Number of Poles
5
Number of Positions
5
Number of Rows
1
Orientation
Straight
Package Quantity
1
Packaging
Bulk
PCB Mount Alignment
No (Without)
PCB Mount Retention
Without
PCB Mounting Orientation
Vertical
PCB Thickness
0.063inch
Pitch
2.54mm
Plating Thickness
3.81um
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
MTA-100
Shrouded
No (Without)
Strain Relief
No (Without)
Tail Length
3.56mm
Termination
Solder
Underplate Material
Nickel
Voltage Rating
250V
Voltage Rating (AC)
250V
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 640454-5 Datasheet
Download the complete datasheet for TE Connectivity 640454-5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

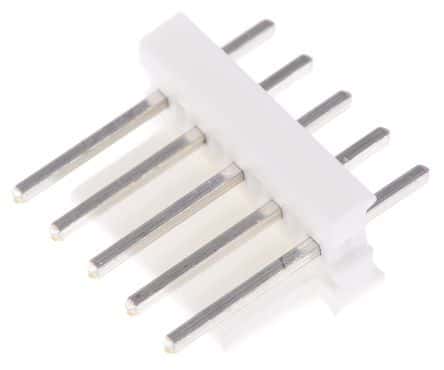

Product Images
