Female, straight, crimp termination connector tool for discrete wire applications. Features copper alloy contacts with gold and tin plating, suitable for 26-24 AWG wire gauges. Operates within a temperature range of -55°C to 105°C, with a 2.41mm depth and 1.7mm height. UL and VDE tested, RoHS compliant, and UL94 V-0 flammability rated. Packaged on tape and reel for efficient production.
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 66108-8 technical specifications.
General
Approvals
UL
Circuit Application
Signal
Contact Gender
Female
Contact Material
Copper Alloy
Contact Plating
Gold, Tin
Contact Type
Power
Depth
2.41mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Female
Height
1.7mm
Insulation Diameter
0.055inch
Lead Free
Not Applicable
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Cable
Orientation
Straight
Package Quantity
4000
Packaging
Tape and Reel
RoHS Compliant
Yes
Series
Multimate III+
Shielding
Unshielded
Termination
Crimp
VDE Tested
Yes
Wire Gauge (Max)
24AWG
Wire Gauge (Min)
26AWG
Wire/Cable Gauge
24AWG
Wire/Cable Type
Discrete
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 66108-8 Datasheet
Download the complete datasheet for TE Connectivity 66108-8 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

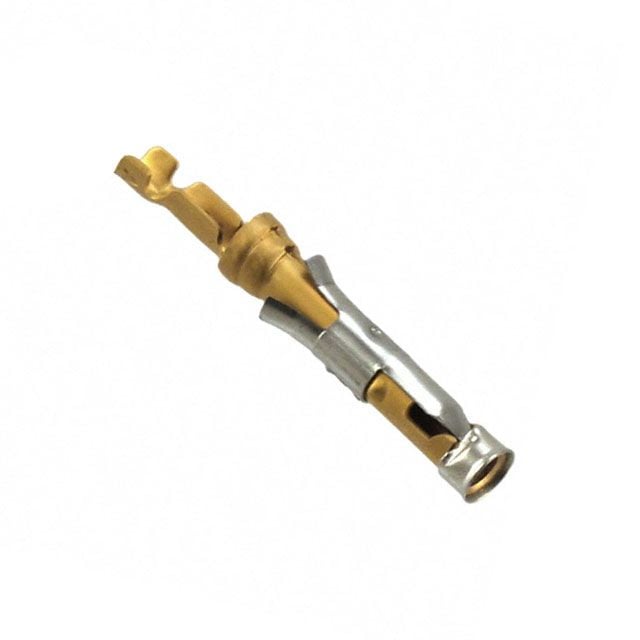

Product Images
