Four-position, dual female edge connector with a 2.5mm pitch, designed for power applications. Features gold and tin plated bronze contacts rated for 35A and 250V operating supply voltage. Through-hole, straight orientation with a vertical PCB mounting orientation suitable for 0.063-inch thick boards. UL94 V-0 flammability rating and RoHS compliant.
Package0102
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 6651170-3 technical specifications.
General
Package/Case
0102
Circuit Application
Power
Color
Black
Contact Current Rating
35A
Contact Material
Bronze
Contact Plating
Gold, Tin
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Female
Height
15mm
Housing Color
Black
Insulation Material
Glass
Mount
Through Hole
Number of Contacts
4
Number of Positions
4
Number of Power Positions
4
Number of Rows
2
Operating Supply Voltage
250V
Orientation
Straight
Package Quantity
192
Packaging
Bulk
PCB Mounting Orientation
Vertical
PCB Thickness
0.063inch
Pitch
2.5mm
Plating
Gold
Plating Thickness
760nm
RoHS Compliant
Yes
Selectively Loaded
No (Without)
Series
Crown Edge, Elcon
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 6651170-3 Datasheet
Download the complete datasheet for TE Connectivity 6651170-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

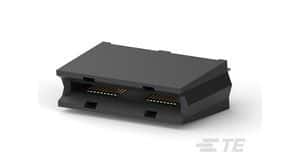

Product Images
