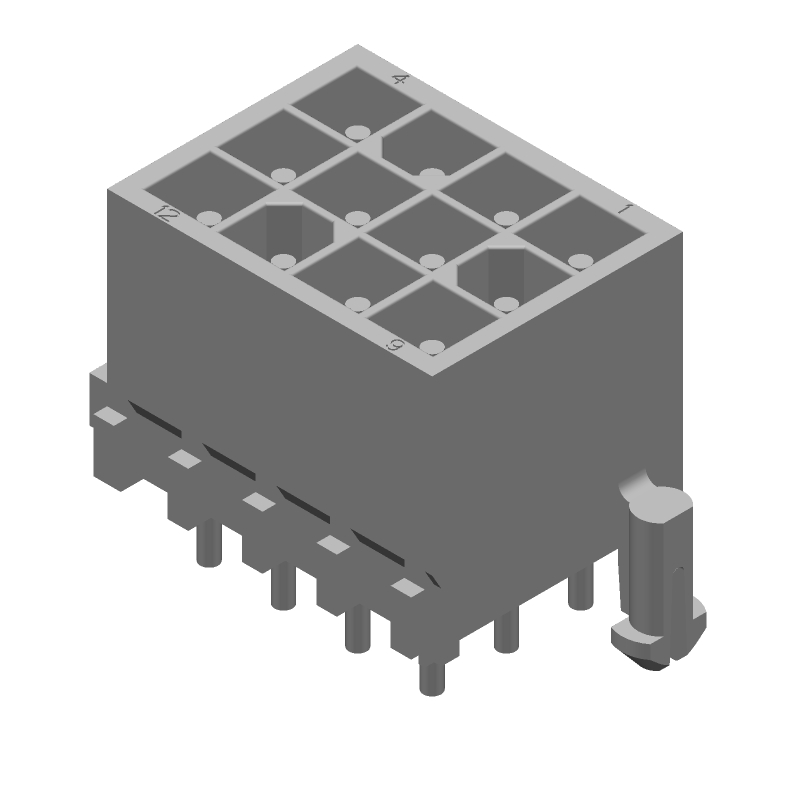

Power connector, wire-to-board system, featuring 12 male pin contacts with a 9.5A current rating and gold mating finish. This straight, through-hole mounted connector offers 12 positions and 3 rows with a 0.162-inch pitch. Constructed with brass contacts and a white nylon housing, it operates within a -67°C to 221°C temperature range and supports up to 600V AC. Approvals include CSA and VDE tested, with a UL94 V-0 flammability rating.
Voltage Rating600V
Current Rating9.5A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 770186-2 technical specifications.
General
Approvals
CSA
Circuit Application
Power
Connector System
Wire-to-Board
Contact Current Rating
9.5A
Contact Finish - Mating
GOLD
Contact Gender
Male
Contact Material
Brass
Contact Plating
Gold, Tin, Lead
Contact Retention
No (Without)
Contact Shape
Circular
Contact Type
Male Pin
Current Rating
9.5A
Depth
16.03mm
Flammability Rating
UL94 V-0
Height
13.49mm
Housing Color
White
Insulation Color
White
Insulation Material
Nylon
Length
18.11mm
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
221°C
Min Operating Temperature
-67°C
Max Voltage Rating (AC)
600V
Mount
Through Hole
Number of Contacts
12
Number of Ports
1
Number of Positions
12
Number of Power Positions
12
Number of Rows
3
Orientation
Straight
Package Quantity
200
Packaging
Bag
PCB Mount Alignment
No (Without)
PCB Mount Retention
With
PCB Mounting Orientation
Vertical
Pitch
0.162inch
Radiation Hardening
No
RoHS Compliant
No
Row Spacing
0.163mm
Sealable
No (Without)
Series
Mini-Universal MATE-N-LOK
Strain Relief
No (Without)
Termination
Solder
VDE Tested
Yes
Voltage Rating
600V
Voltage Rating (AC)
600V
Width
13.97mm
Compliance
RoHS
Not CompliantNo
