776164-1

Datasheet

35 Pos Crimp Wire Housing, 17A, 250VDC, Gold Plated, Black

TE Connectivity

776164-1

Name: 776164-1 TE Connectivity
Brand: TE Connectivity
SKU: 776164-1

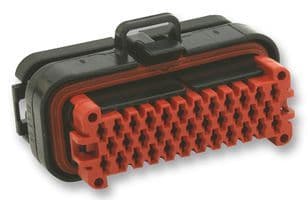

35 Pos Crimp Wire Housing, 17A, 250VDC, Gold Plated, Black

35-position, 3-row wire housing for automotive applications. Features a straight, cable mount orientation with a 4mm pitch and 0.157-inch row spacing. Constructed from black thermoplastic with a UL94 V-0 flammability rating. Accepts female socket contacts made of gold-plated copper alloy, supporting 16-20 AWG wire. Rated for 17A current and 250V DC, operating between -40°C and 125°C. This insulated, sealable, and polarized connector system is designed for wire-to-device connections.

Current Rating17A

MountingFree Hanging, Through Hole, Cable

PolarityYes

Quick Jump:

Technical Specifications

TE Connectivity 776164-1 technical specifications.

General

Color	Black
Connector System	Wire-to-Device
Contact Material	Copper Alloy
Contact Plating	Gold
Contact Type	Female Socket
Current Rating	17A
Depth	33.6mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Male
Height	1.362inch
Housing Color	Black
Hybrid Connector	No
Insulation	Insulated
Lead Free	Lead Free
Length	63.4mm
Material	Thermoplastic
Max Current Rating	3A
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
Max Voltage Rating (DC)	250V
Mount	Free Hanging, Through Hole, Cable
Number of Contacts	35
Number of Positions	35
Number of Rows	3
Orientation	Straight
Package Quantity	220
Packaging	Bulk
Pitch	0.157inch
Polarized	Yes
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Row Spacing	0.157inch
Sealable	Yes (With)
Series	Ampseal
Serviceable	Yes
Strain Relief	Add By Accessory
Termination	Crimp
Width	33.6mm
Wire Gauge (Max)	20AWG
Wire Gauge (Min)	16AWG
