35-position, 3-row vertical header assembly for wire-to-device applications. Features male pin contacts with tin plating on brass, rated for 17A and 250V AC. Constructed with black PBT insulation, offering a maximum operating temperature of 221°C and UL94 V-0 flammability. Designed for through-hole and panel mounting with a 0.157-inch pitch and 0.157-inch row spacing.
Voltage Rating250V
Current Rating17A
MountingThrough Hole, Panel
Quick Jump:
Technical Specifications
TE Connectivity 776231-1 technical specifications.
General
Circuit Application
Power
Color
Black
Connector System
Wire-to-Device
Contact Finish - Mating
TIN
Contact Material
Brass
Contact Plating
Tin
Contact Shape
Circular
Contact Type
Male Pin
Current Rating
17A
Depth
32.1mm
Flammability Rating
UL94 V-0
Gender
Male
Height
34.25mm
Insulation Color
Black
Insulation Material
PBT
Length
3.03inch
Max Operating Temperature
221°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
250V
Mount
Through Hole, Panel
Number of Contacts
35
Number of Ports
1
Number of Positions
35
Number of Rows
3
Number of Signal Positions
35
Operating Supply Voltage
250V
Orientation
Straight
Package Quantity
1
Packaging
Bulk
PCB Mount Alignment
Yes (With)
PCB Mount Retention
Without
PCB Thickness
0.062inch
Pitch
0.157inch
Primary Type
Rectangular
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Row Spacing
0.157inch
Sealable
Yes (With)
Series
Ampseal
Shielding
Unshielded
Tab Thickness
1.3mm
Termination
Solder
Voltage Rating
250V
Voltage Rating (AC)
250V
Width
1.264inch
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 776231-1 Datasheet
Download the complete datasheet for TE Connectivity 776231-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

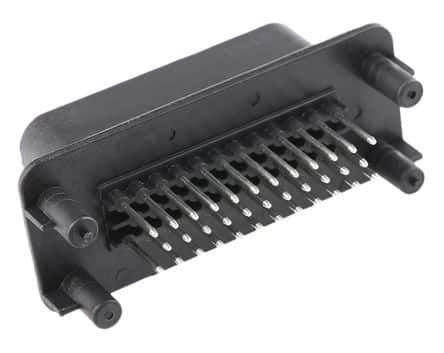

Product Images
