Two-position, wire-to-wire plug assembly featuring female socket contacts for 14-18 AWG wire. This straight, free-hanging connector boasts a red PBT thermoplastic housing with a 0.177-inch pitch. Operating within a -40°C to 125°C range, it is UL94 HB flammability rated and RoHS compliant.
MountingFree Hanging
PolarityYes
Quick Jump:
Technical Specifications
TE Connectivity 776427-1 technical specifications.
General
Body Material
PBT
Color
Red
Connector System
Wire-to-Wire
Contact Type
Female Socket
Flammability Rating
UL94 HB
Gender
Female
Height
23.5mm
Housing Color
Red
Hybrid Connector
No
Lead Free
Lead Free
Length
0.8inch
Material
Thermoplastic
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Free Hanging
Number of Contacts
2
Number of Positions
2
Number of Rows
1
Orientation
Straight
Package Quantity
27
Packaging
Bulk
Pitch
0.177inch
Polarized
Yes
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
Yes (With)
Series
AMPSEAL 16
Serviceable
Yes
Strain Relief
Add By Accessory
Termination
Crimp
Width
36.75mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 776427-1 Datasheet
Download the complete datasheet for TE Connectivity 776427-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

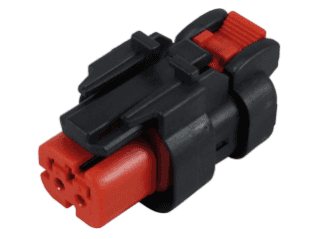

Product Images
