4-position, wire-to-wire connector cap assembly featuring male pin contacts for 18-20 AWG wire. Constructed from red PBT thermoplastic, this female connector offers a 4.5mm row spacing and 0.209-inch pitch. It operates within a -40°C to 125°C temperature range and is UL94 HB flammability rated. Designed for free-hanging, clip mounting, this polarized connector is sealable and RoHS compliant.
MountingFree Hanging, Clip
PolarityYes
Quick Jump:
Technical Specifications
TE Connectivity 776536-1 technical specifications.
General
Body Material
PBT
Color
Red
Connector System
Wire-to-Wire
Contact Type
Male Pin
Depth
47.55mm
Flammability Rating
UL94 HB
Gender
Female
Height
0.884inch
Hybrid Connector
No
Lead Free
Lead Free
Length
24.6mm
Material
Thermoplastic
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Free Hanging, Clip
Number of Contacts
4
Number of Positions
4
Number of Rows
2
Package Quantity
1
Packaging
Bulk
Pitch
0.209inch
Polarized
Yes
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Row Spacing
4.5mm
Sealable
Yes (With)
Series
AMPSEAL 16
Serviceable
Yes
Strain Relief
Add By Accessory
Termination
Crimp
Width
47.55mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 776536-1 Datasheet
Download the complete datasheet for TE Connectivity 776536-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

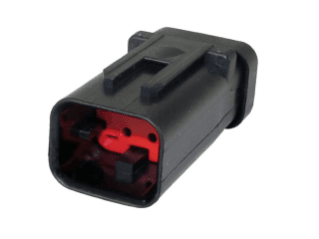

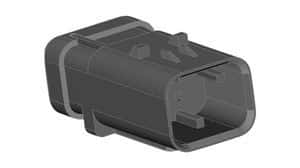

Product Images
