Vertical, through-hole modular Ethernet connector with 68 signal contacts and 68 positions. Features gold-plated bronze contacts, a polyphthalamide dielectric, and a steel shell. Rated for 30V AC, operating between -55°C and 105°C, with UL94 V-0 flammability. Includes mating connector lock and retention, with a straight strain relief.
Voltage Rating30V
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 786554-7 technical specifications.
General
Approvals
UL, CSA
Color
Black
Contact Material
Bronze
Contact Plating
Gold
Contact Post Length
0.173inch
Contact Type
Signal
Depth
10.31mm
Dielectric Material
Polyphthalamide
ELV
Non-Compliant
Features
Shielded
Flammability Rating
UL94 V-0
Gender
Female
Housing Color
Black
Lead Free
Contains Lead
Length
63.88mm
Mating Alignment
No (Without)
Mating Connector Lock
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Max Supply Voltage (AC)
30V
Max Voltage Rating (AC)
30V
Mount
Through Hole
Number of Contacts
68
Number of Ports
1
Number of Positions
68
Number of Rows
2
Orientation
Straight
Package Quantity
8
Packaging
Rail/Tube
PCB Mount Alignment
No (Without)
PCB Mount Retention
With
PCB Mounting Orientation
Vertical
PCB Thickness
2.36mm
Pitch
0.05inch
Plating
Copper
Radiation Hardening
No
RoHS Compliant
No
Series
AMPLIMITE .050 III
Shell Material
Steel
Shell Size
A
Shielding
Shielded
Strain Relief
Straight
Termination
Solder
Voltage Rating
30V
Voltage Rating (AC)
30V
Compliance
RoHS
Not CompliantNo
Datasheet
TE Connectivity 786554-7 Datasheet
Download the complete datasheet for TE Connectivity 786554-7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

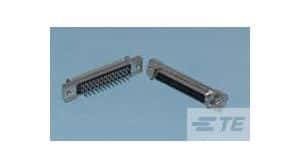

Product Images
