68-position, 68-contact SCSI connector with a right-angle, through-hole mounting orientation. Features a 1.27mm pitch, 0.05-inch contact pitch, and 0.1-inch contact post length. Constructed with a thermoplastic dielectric and steel shell, it offers shielded operation and a solder termination. Rated for 30V AC/DC, with a maximum operating temperature of 105°C.
Voltage Rating30V
MountingThrough Hole, Edge, Board
Quick Jump:
Technical Specifications
TE Connectivity 787170-7 technical specifications.
General
| Approvals | UL |
| Color | Black |
| Contact Material | Bronze |
| Contact Plating | Gold, Tin, Lead |
| Contact Post Length | 0.1inch |
| Contact Type | Signal |
| Depth | 16.76mm |
| Dielectric Material | Thermoplastic |
| ELV | Non-Compliant |
| Features | Shielded |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Housing Color | Black |
| Lead Free | Contains Lead |
| Length | 63.88mm |
| Material | Metal |
| Mating Alignment | No (Without) |
| Mating Retention | No (Without) |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, Edge, Board |
| Number of Contacts | 68 |
| Number of Ports | 1 |
| Number of Positions | 68 |
| Number of Rows | 2 |
| Orientation | Right Angle |
| Package Quantity | 8 |
| Packaging | Rail/Tube |
| PCB Mount Alignment | No (Without) |
| PCB Mount Retention | With |
| PCB Mounting Orientation | Right Angle |
| PCB Thickness | 1.57mm |
| Pitch | 0.05inch |
| Plating | Bright, Copper |
| RoHS Compliant | No |
| Series | AMPLIMITE .050 III |
| Shell Material | Steel |
| Shielding | Shielded |
| Strain Relief | Straight |
| Termination | Solder |
| Voltage Rating | 30V |
| Voltage Rating (AC) | 30V |
Compliance
| RoHS | Not Compliant |
Datasheet
TE Connectivity 787170-7 Datasheet
Download the complete datasheet for TE Connectivity 787170-7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

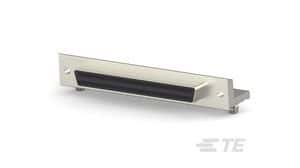

Product Images
