Wire-to-wire circular connector plug assembly featuring 4 male crimp contacts made of copper alloy with nickel plating. This straight, unshielded plug has a 600V AC voltage rating, 17A current rating, and operates within a -55°C to 105°C temperature range. The black nylon/polyamide housing is UL94 V-0 flammability rated and offers IP67, waterproof, and dust-tight protection. Designed for free hanging, panel, or cable mounting, it includes mating alignment and retention features.
Voltage Rating600V
Current Rating17A
MountingFree Hanging, Panel, Cable
Quick Jump:
Technical Specifications
TE Connectivity 788153-2 technical specifications.
General
Approvals
UL, CSA, VDE
Body Material
Nylon, Polyamide
Color
Black
Connector System
Wire-to-Wire
Contact Gender
Male
Contact Material
Copper Alloy
Contact Plating
Nickel
Contact Protection
Yes (With)
Contact Shape
Circular
Contact Type
CRIMP
Current Rating
17A
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Male
Housing Color
Black
Length
49.78mm
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
600V
Mount
Free Hanging, Panel, Cable
Number of Contacts
4
Number of Ports
1
Number of Positions
4
Number of Signal Positions
4
Orientation
Straight
Package Quantity
100
Packaging
Bag
Radiation Hardening
No
Ratings
IP67, Waterproof, Dust Tight, IP65
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sealable
Yes (With)
Series
CPC Series 1
Shell Material
Nylon
Shell Size
11
Shielding
Unshielded
Strain Relief
No (Without)
Termination
Crimp
VDE Tested
No
Voltage Rating
600V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 788153-2 Datasheet
Download the complete datasheet for TE Connectivity 788153-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

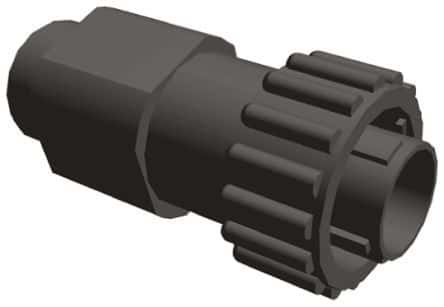

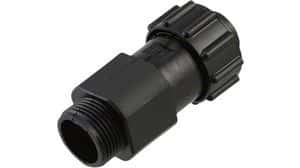

Product Images
