9-position, circular receptacle connector with male crimp pin contacts. Features a straight, wire-to-wire connection system with a black nylon/polyamide body and housing. Rated for 600V AC, operating between -55°C and 125°C, with IP67 and IP65 sealing for waterproof and dust-tight applications. Includes mating alignment and retention, with contact protection.
Voltage Rating600V
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
TE Connectivity 788159-2 technical specifications.
General
| Approvals | UL, CSA, VDE |
| Body Material | Nylon, Polyamide |
| Color | Black |
| Connector System | Wire-to-Wire |
| Contact Gender | Male |
| Contact Protection | Yes (With) |
| Contact Shape | Circular |
| Contact Style | Pin |
| Contact Type | CRIMP |
| Depth | 27.23mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Housing Color | Black |
| Insulation Diameter | 3.05mm |
| Lead Free | Lead Free |
| Length | 43.31mm |
| Material | Plastic |
| Mating Alignment | Yes (With) |
| Mating Retention | Yes (With) |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 600V |
| Mount | Free Hanging, Cable |
| Number of Contacts | 9 |
| Number of Ports | 1 |
| Number of Positions | 9 |
| Number of Signal Positions | 9 |
| Operating Supply Voltage | 600V |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Plating | Thermoplastic |
| Radiation Hardening | No |
| Ratings | IP67, Waterproof, Dust Tight, IP65 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sealable | Yes (With) |
| Series | CPC Series 1 |
| Shell Material | Nylon |
| Shell Size | 13 |
| Shielding | Unshielded |
| Strain Relief | No (Without) |
| Termination | Crimp |
| VDE Tested | No |
| Voltage Rating | 600V |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 788159-2 Datasheet
Download the complete datasheet for TE Connectivity 788159-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

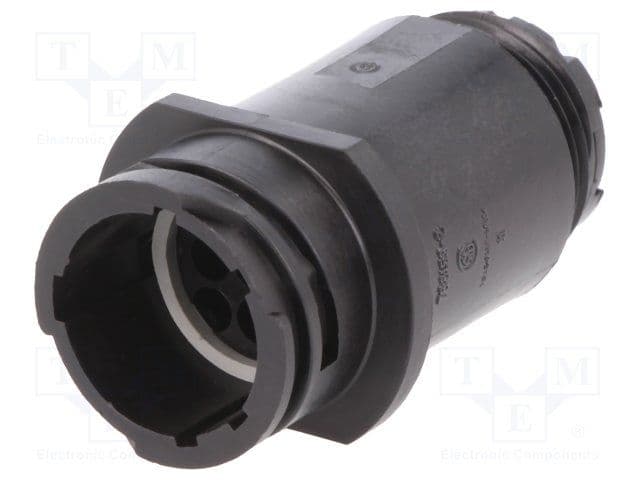

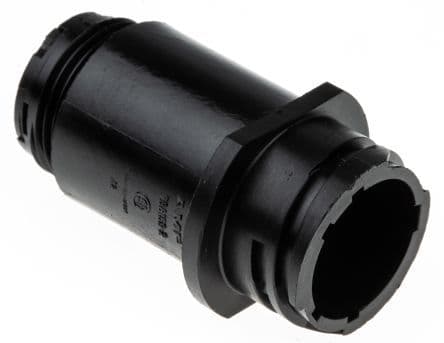

Product Images
