TE CONNECTIVITY

794120-1

Datasheet

2 Pos Power Connector, 5.08mm Pitch, RA Solder, 13A, 250V

TE Connectivity

794120-1

Name: 794120-1 TE Connectivity
Brand: TE Connectivity
SKU: 794120-1

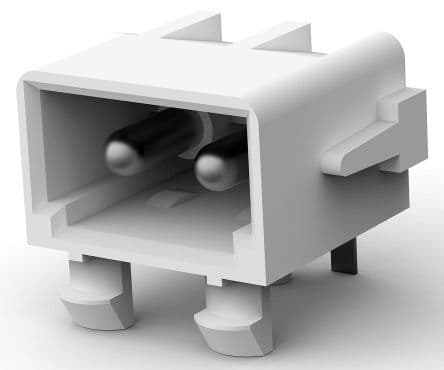

2 Pos Power Connector, 5.08mm Pitch, RA Solder, 13A, 250V

2-position, right-angle wire-to-board power connector with a 5.08mm pitch. Features male pin contacts made of bronze and copper alloy with tin plating, rated for 12A contact current and 13A current. The nylon housing and insulation are natural colored, with a UL94 V-2 flammability rating. Maximum operating temperature is 221°C, with a voltage rating of 250V AC/DC. Through-hole mounting with solder termination and mating alignment.

Voltage Rating250V

Current Rating13A

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 794120-1 technical specifications.

General

Approvals	CSA
Circuit Application	Power
Connector System	Wire-to-Board
Contact Current Rating	12A
Contact Finish - Mating	TIN
Contact Gender	Male
Contact Material	Bronze, Copper Alloy
Contact Plating	Tin
Contact Retention	No (Without)
Contact Shape	Circular
Contact Type	Male Pin
Current Rating	13A
ELV	Compliant
Flammability Rating	UL94 V-2
Housing Color	Natural
Insulation Color	Natural
Insulation Material	Nylon
Lead Free	Lead Free
Length	15.24mm
Material	Nylon
Mating Alignment	Yes (With)
Mating Retention	Yes (With)
Max Operating Temperature	221°C
Min Operating Temperature	-67°C
Max Voltage Rating (AC)	250V
Max Voltage Rating (DC)	250.25kV
Mount	Through Hole
Number of Circuits	2
Number of Contacts	2
Number of Ports	1
Number of Positions	2
Number of Power Positions	2
Number of Rows	1
Orientation	Right Angle
Package Quantity	100
Packaging	Bag
PCB Mount Alignment	Yes (With)
PCB Mount Retention	With
PCB Mounting Orientation	Right Angle
Pitch	5.08mm
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Sealable	No (Without)
Series	Commercial MATE-N-LOK
Strain Relief	No (Without)
Termination	Solder
VDE Tested	No
Voltage Rating	250V
Width	12.3mm
