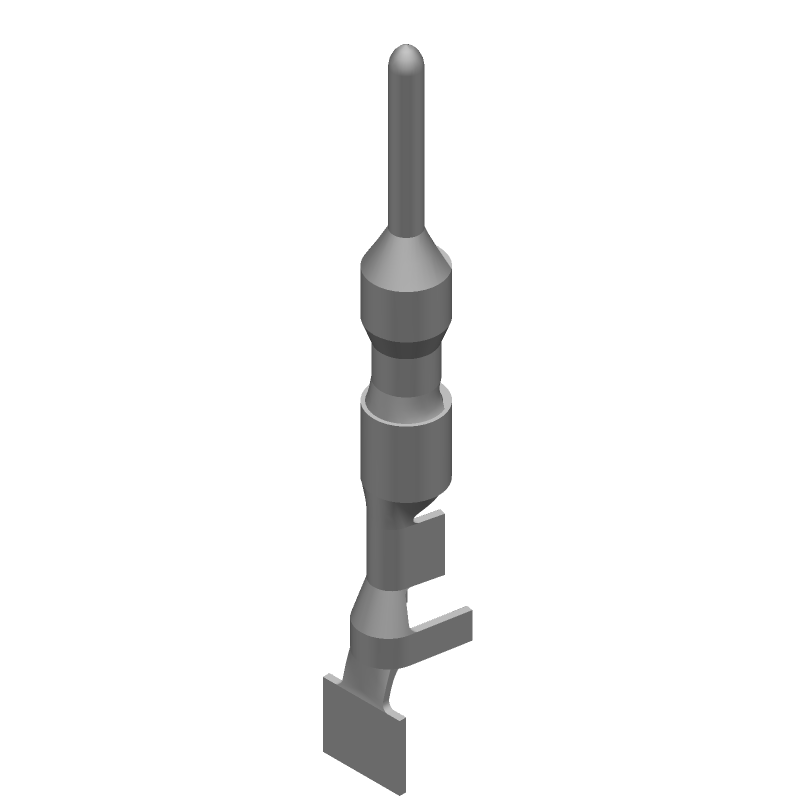

Male power contact for wire-to-wire applications, featuring a straight, crimp termination for discrete wires. Designed for 22-26 AWG cable, it offers a 10.5A contact current rating and 9.5A current rating, with a 600V voltage rating. Constructed from brass with tin plating, this contact operates within a temperature range of -67°C to 221°C and has an insulation diameter of 1.75mm. It is RoHS compliant and VDE tested, packaged in tape and reel.
Voltage Rating600V
Current Rating9.5A
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 794218-1 technical specifications.
General
Approvals
UL
Circuit Application
Power
Connector System
Wire-to-Wire
Contact Current Rating
10.5A
Contact Gender
Male
Contact Material
Brass
Contact Plating
Tin
Contact Type
Power
Current Rating
9.5A
Depth
2.95mm
ELV
Compliant
Gender
Male
Height
2.92mm
Insulation Diameter
1.75mm
Lead Free
Not Applicable
Length
20.2mm
Max Operating Temperature
221°C
Min Operating Temperature
-67°C
Mount
Cable
Orientation
Straight
Package Quantity
7000
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
Mini-Universal MATE-N-LOK II
Termination
Crimp
VDE Tested
Yes
Voltage Rating
600V
Wire Gauge (Max)
22AWG
Wire Gauge (Min)
26AWG
Wire/Cable Type
Discrete
Compliance
RoHS
Compliant
