Power connector for wire-to-wire applications, featuring a male, straight, crimp termination. Designed for 22-18 AWG discrete wire, it offers a 10.5A current rating and 600V voltage rating. Constructed with brass contacts and tin plating, this component operates within a temperature range of -67°C to 221°C. Approvals include UL and VDE testing, with RoHS compliance.
Voltage Rating600V
Current Rating10.5A
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 794228-1 technical specifications.
General
Approvals
UL
Circuit Application
Power
Connector System
Wire-to-Wire
Contact Current Rating
10.5A
Contact Gender
Male
Contact Material
Brass
Contact Plating
Tin
Contact Type
Power
Current Rating
10.5A
Depth
3.81mm
Gender
Male
Height
4.42mm
Insulation Diameter
0.11inch
Length
20.2mm
Max Operating Temperature
221°C
Min Operating Temperature
-67°C
Max Voltage Rating (AC)
600V
Mount
Cable
Orientation
Straight
Package Quantity
1000
Packaging
Bag
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Mini-Universal MATE-N-LOK II
Termination
Crimp
VDE Tested
Yes
Voltage Rating
600V
Wire Gauge (Max)
18AWG
Wire Gauge (Min)
22AWG
Wire/Cable Gauge
18AWG
Wire/Cable Type
Discrete
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 794228-1 Datasheet
Download the complete datasheet for TE Connectivity 794228-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

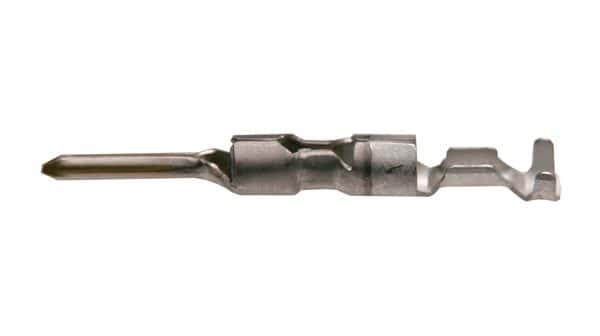

Product Images
