3-position, right-angle terminal block with 5.08mm pitch. Features screw termination for wire connection, rated for 15A and 300V AC. Constructed with a green nylon housing and bronze contacts with tin plating. Compliant with UL, RoHS, and ELV standards, offering a flammability rating of UL94 V-0. Operates within a temperature range of -40°C to 110°C.
Voltage300V
Current15A
Voltage Rating300V
Current Rating15A
Quick Jump:
Technical Specifications
TE Connectivity 796634-3 technical specifications.
General
| Approvals | UL |
| Color | Green |
| Contact Material | Bronze |
| Contact Plating | Tin |
| Current | 15A |
| Current Rating | 15A |
| Depth | 18.4mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Housing Color | Green |
| Interlock | No (Without) |
| Lead Free | Lead Free |
| Length | 15.24mm |
| Material | Nylon |
| Max Current Rating | 15A |
| Max Operating Temperature | 110°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage (AC) | 300V |
| Max Voltage Rating (AC) | 300V |
| Mount | Through Hole |
| Number of Circuits | 3 |
| Number of Contacts | 3 |
| Number of Levels | 1 |
| Number of Poles | 3 |
| Number of Positions | 3 |
| Number of Positions Per Level | 3 |
| Number of Rows | 1 |
| Number of Ways | 3 |
| Orientation | Right Angle |
| Package Quantity | 200 |
| Packaging | Bulk |
| Pitch | 5.08mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Screw Flange | No (Without) |
| Screwless Terminal Block | No (Without) |
| Series | Buchanan |
| Shrouded | No (Without) |
| Side Stackable | Yes (With) |
| Termination | Screw |
| Voltage | 300V |
| Voltage Rating | 300V |
| Wire Gauge (Max) | 30AWG |
| Wire Gauge (Min) | 30AWG |
| Wire/Cable Gauge | 30AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 796634-3 Datasheet
Download the complete datasheet for TE Connectivity 796634-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

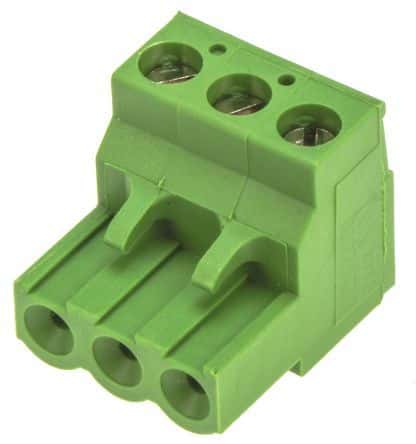

Product Images
