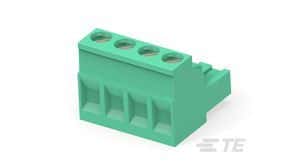

4 Pos 5.08mm Pitch RA Screw Terminal Block, 300V, 15A, Green

TE Connectivity

796634-4

Name: 796634-4 TE Connectivity
Brand: TE Connectivity
SKU: 796634-4

4 Pos 5.08mm Pitch RA Screw Terminal Block, 300V, 15A, Green

General purpose terminal block, 4 positions, 4 circuits, 1 level, right angle orientation, 5.08mm pitch. Features a 15A current rating and 300V voltage rating. Constructed with a green nylon housing and bronze contacts with tin plating. Through-hole mountable, side stackable, and rated UL94 V-0 for flammability. Operates within a temperature range of -40°C to 110°C.

Voltage300V

Current15A

Voltage Rating300V

Current Rating15A

Quick Jump:

Technical Specifications

TE Connectivity 796634-4 technical specifications.

General

Approvals	UL
Color	Green
Contact Material	Bronze
Contact Plating	Tin
Current	15A
Current Rating	15A
Depth	18.4mm
ELV	Compliant
Flammability Rating	UL94 V-0
Height	15.5mm
Housing Color	Green
Interlock	No (Without)
Lead Free	Lead Free
Length	20.32mm
Material	Nylon
Max Current Rating	15A
Max Operating Temperature	110°C
Min Operating Temperature	-40°C
Max Supply Voltage (AC)	300V
Max Voltage Rating (AC)	300V
Mount	Through Hole
Number of Circuits	4
Number of Contacts	4
Number of Levels	1
Number of Poles	4
Number of Positions	4
Number of Positions Per Level	4
Number of Rows	1
Number of Ways	4
Orientation	Right Angle
Package Quantity	150
Packaging	Bulk
Pitch	5.08mm
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Screw Flange	No (Without)
Screwless Terminal Block	No (Without)
Series	Buchanan
Shrouded	No (Without)
Side Stackable	Yes (With)
Termination	Screw
Voltage	300V
Voltage Rating	300V
Wire Gauge (Max)	30AWG
Wire Gauge (Min)	30AWG
Wire/Cable Gauge	30AWG
