2-position, right-angle terminal block plug with 5.08mm pitch. Features bronze contacts with tin plating, rated for 15A and 300V AC. Constructed with black UL94 V-0 flammability rated housing, it offers side stackability and through-hole mounting. Operating temperature range is -40°C to 105°C.
Voltage300V
Current15A
Current Rating15A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 796635-2 technical specifications.
General
Color
Black
Contact Material
Bronze
Contact Plating
Tin
Current
15A
Current Rating
15A
Depth
18.4mm
ELV
Compliant
Flammability Rating
UL94 V-0
Housing Color
Black
Interlock
Yes (With)
Lead Free
Lead Free
Length
10.16mm
Max Current Rating
15A
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Supply Voltage (AC)
300V
Max Voltage Rating (AC)
300V
Mount
Through Hole
Number of Circuits
2
Number of Contacts
2
Number of Levels
1
Number of Poles
2
Number of Positions
2
Number of Positions Per Level
2
Number of Rows
1
Orientation
Right Angle
Package Quantity
300
Packaging
Box
Pitch
5.08mm
Radiation Hardening
No
RoHS Compliant
Yes
Screw Flange
No (Without)
Screwless Terminal Block
No (Without)
Series
Buchanan
Shrouded
No (Without)
Side Stackable
Yes (With)
Termination
Screw
Voltage
300V
Voltage Rating (AC)
300V
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
30AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 796635-2 Datasheet
Download the complete datasheet for TE Connectivity 796635-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

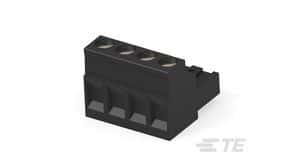

Product Images
