8-position PCB mount terminal block with a 5.08mm pitch, featuring brass contacts with tin plating. This straight-orientation, single-level block supports a maximum current rating of 17.5A and a voltage rating of 300V. Constructed with a black housing, it offers UL approvals and a UL94 V-0 flammability rating, with a temperature range of -40°C to 105°C. Designed for through-hole mounting with screw termination, it is RoHS compliant and includes an interlock feature.
Voltage300V
Current17.5A
Voltage Rating300V
Current Rating17.5A
Quick Jump:
Technical Specifications
TE Connectivity 796949-8 technical specifications.
General
Approvals
UL
Closed End
No (Without)
Color
Black
Contact Material
Brass
Contact Plating
Tin
Current
17.5A
Current Rating
17.5A
ELV
Compliant
Flammability Rating
UL94 V-0
Housing Color
Black
Interlock
Yes (With)
Lead Free
Lead Free
Max Current Rating
17.5A
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
300V
Mount
Through Hole
Number of Circuits
8
Number of Contacts
8
Number of Levels
1
Number of Poles
8
Number of Positions
8
Number of Positions Per Level
8
Number of Rows
1
Orientation
Straight
Package Quantity
100
Packaging
Box
Pitch
5.08mm
Plating
Brass
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Screw Flange
No (Without)
Screwless Terminal Block
No (Without)
Series
Buchanan
Side Stackable
No (Without)
Tail Length
3.5mm
Termination
Screw
Voltage
300V
Voltage Rating
300V
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
30AWG
Wire/Cable Gauge
30AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 796949-8 Datasheet
Download the complete datasheet for TE Connectivity 796949-8 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

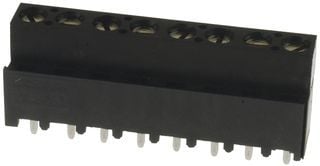

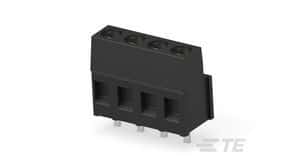

Product Images
