16-position, 2-row right-angle socket strip with 1.27mm pitch for wire-to-board applications. Features female socket contacts made of bronze with tin plating, rated for 1.5A. Designed for through-hole termination with PCB mount alignment and retention, suitable for 1.6mm PCB thickness. Operates within a temperature range of -40°C to 105°C, with a red housing and UL94 V-0 flammability rating.
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 8-100400-6 technical specifications.
General
Board Standoff
No (Without)
Color
Red
Connector System
Wire-to-Board
Contact Current Rating
1.5A
Contact Material
Bronze
Contact Plating
Tin
Contact Type
Female Socket
ELV
Compliant
Flammability Rating
UL94 V-0
Height
0.23inch
Housing Color
Red
Length
22.4mm
Mating Connector Lock
No (Without)
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Through Hole
Number of Contacts
16
Number of Positions
16
Number of Rows
2
Orientation
Right Angle
Package Quantity
250
Packaging
Box
PCB Mount Alignment
Yes (With)
PCB Mount Retention
With
PCB Mounting Orientation
Right Angle
PCB Thickness
1.6mm
Pitch
0.05inch
Radiation Hardening
No
RoHS Compliant
Yes
Row Spacing
1.5mm
Series
Micro-MaTch
Termination
Through Hole
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 8-100400-6 Datasheet
Download the complete datasheet for TE Connectivity 8-100400-6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

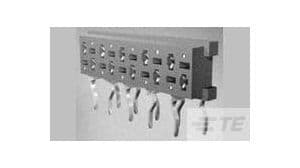

Product Images
