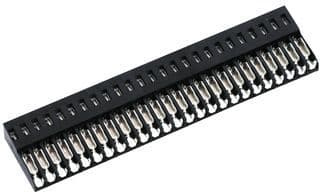

64-position, 2-row female socket header with a 2.54mm pitch, designed for board-to-board and mezzanine applications. Features a 3A contact current rating, copper alloy contacts with tin plating, and a straight orientation. The black housing has a height of 6.1mm and is UL94 V-0 flammability rated. Termination is IDC for discrete or ribbon wire gauges from 26AWG to 22AWG. Operating temperature range is -65°C to 105°C, with CSA approval and RoHS compliance.
Current Rating3A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
TE Connectivity 8-102398-0 technical specifications.
General
Approvals
CSA
Color
Black
Contact Current Rating
3A
Contact Gender
Female
Contact Material
Copper Alloy
Contact Plating
Tin
Contact Type
Female Socket
Current Rating
3A
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Receptacle
Height
6.1mm
Housing Color
Black
Insulation Diameter
1.27mm
Lead Free
Not Applicable
Length
81.28mm
Mating Alignment
No (Without)
Mating Connector Lock
No (Without)
Max Operating Temperature
105°C
Min Operating Temperature
-65°C
Mount
Free Hanging, Cable
Number of Contacts
64
Number of Positions
64
Number of Rows
2
Orientation
Straight
Package Quantity
30
Packaging
Tray
Pitch
2.54mm
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Row Spacing
0.1inch
Series
AMPMODU MT
Termination
IDC
Wire Gauge (Max)
22AWG
Wire Gauge (Min)
26AWG
Wire/Cable Gauge
22AWG
Wire/Cable Type
Discrete, Ribbon
Compliance
RoHS
Compliant
