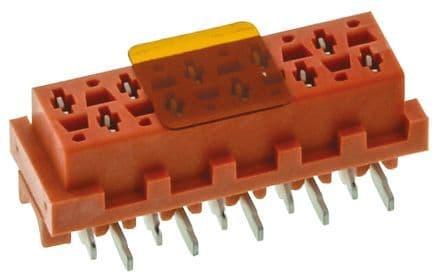

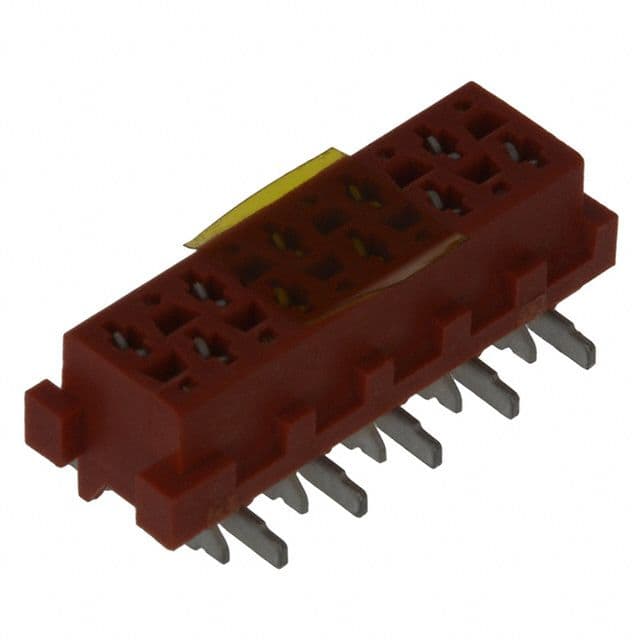

8-188275-0

10 Pos 2 Row 1.5A Receptacle, 0.05" Pitch, SMD FTE

Surface mount receptacle for board-to-board applications. Features 10 positions across 2 rows with a 0.05-inch pitch. Contact current rating of 1A, with a system current rating of 1.5A. Constructed with bronze contacts and tin plating, offering a 105°C maximum operating temperature. Nylon insulation and a red housing contribute to its UL94 V-0 flammability rating.

Voltage Rating230V

Current Rating1.5A

MountingSurface Mount

Quick Jump:

Technical Specifications

TE Connectivity 8-188275-0 technical specifications.

General

Board Standoff	Yes (With)
Connector System	Board-to-Board
Contact Current Rating	1A
Contact Finish - Mating	TIN
Contact Material	Bronze
Contact Plating	Tin
Contact Type	Forked
Current Rating	1.5A
Depth	7mm
Flammability Rating	UL94 V-0
Gender	Receptacle
Height	0.21inch
Housing Color	Red
Insulation Color	Red
Insulation Material	Nylon
Length	14.7mm
Mating Alignment	Yes (With)
Mating Connector Lock	No (Without)
Mating Retention	No (Without)
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Max Voltage Rating (AC)	100V
Max Voltage Rating (DC)	100V
Mount	Surface Mount
Number of Contacts	10
Number of Positions	10
Number of Rows	2
Operating Supply Voltage	100V
Orientation	Straight
Package Quantity	900
Packaging	Tape and Reel
PCB Mount Alignment	Yes (With)
PCB Mount Retention	Without
PCB Mounting Orientation	Vertical
Pitch	0.05inch
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Row Spacing	1.5mm
Series	Micro-MaTch
Shrouded	No (Without)
Termination	SMD/SMT
Voltage Rating	230V
DC Rated Voltage	100V
