18-position, 2-row board-to-board receptacle with a 0.05-inch pitch. Features tin-plated bronze female sockets with a 1.5A contact current rating and 0.122-inch contact post length. This straight, shrouded header has a polyester housing in red, rated for 230V operating voltage and 105°C maximum operating temperature. It mounts vertically via through-hole termination and is RoHS compliant.
Voltage Rating230V
Current Rating1.5A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 8-215079-8 technical specifications.
General
| Board Standoff | No (Without) |
| Color | Red |
| Connector System | Board-to-Board |
| Contact Current Rating | 1.5A |
| Contact Material | Bronze |
| Contact Plating | Tin |
| Contact Post Length | 0.122inch |
| Contact Type | Female Socket |
| Current Rating | 1.5A |
| Depth | 5.1mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Height | 0.16inch |
| Housing Color | Red |
| Lead Length | 3.0988mm |
| Length | 0.976inch |
| Material | Polyester |
| Mating Alignment | No (Without) |
| Mating Connector Lock | No (Without) |
| Mating Retention | No (Without) |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Contacts | 18 |
| Number of Positions | 18 |
| Number of Rows | 2 |
| Operating Supply Voltage | 100V |
| Orientation | Straight |
| Package Quantity | 250 |
| Packaging | Box |
| PCB Mount Alignment | No (Without) |
| PCB Mount Retention | With |
| PCB Mounting Orientation | Vertical |
| Pitch | 0.05inch |
| Plating Thickness | 0.005um |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Row Spacing | 0.1inch |
| Series | Micro-MaTch |
| Shrouded | Yes (With) |
| Termination | Through Hole |
| Voltage Rating | 230V |
| DC Rated Voltage | 100V |
| Width | 24.9mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 8-215079-8 Datasheet
Download the complete datasheet for TE Connectivity 8-215079-8 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

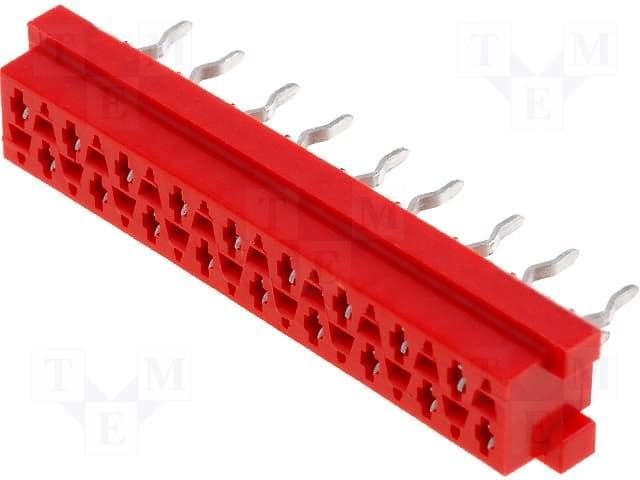

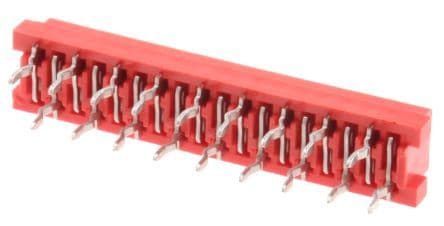

Product Images
