8-215464-6

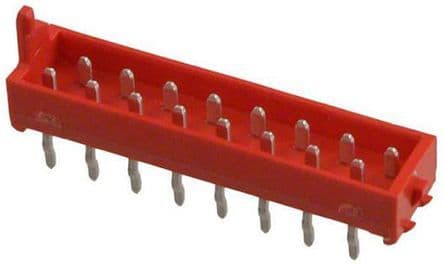

16 Pos 1.27mm Pitch Shrouded Header, Male, Straight, 1.5A, 230V

16-position, 2-row shrouded male header with a 1.27mm lead pitch. Features straight, top-entry, through-hole termination for vertical PCB mounting. Contact current rating is 1.5A, with bronze contacts plated in tin (5um). Insulation material is PBT, housing color is red, and it operates within a -40°C to 105°C temperature range. UL94 V-0 flammability rating and RoHS compliant.

Voltage Rating230V

Current Rating1.5A

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 8-215464-6 technical specifications.

General

Board Standoff	No (Without)
Color	Red
Connector System	Board-to-Board
Contact Current Rating	1.5A
Contact Gender	Male
Contact Material	Bronze
Contact Plating	Tin
Contact Post Length	0.122inch
Contact Type	Male Pin
Current Rating	1.5A
Depth	5mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Male
Height	6.9mm
Housing Color	Red
Insulation Material	PBT
Lead Free	Lead Free
Lead Pitch	1.27mm
Length	19.05mm
Mating Alignment	No (Without)
Mating Retention	No (Without)
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Mount	Through Hole
Number of Contacts	16
Number of Poles	16
Number of Positions	16
Number of Rows	2
Orientation	Straight
Package Quantity	250
Packaging	Box
PCB Mount Alignment	No (Without)
PCB Mount Retention	With
PCB Mounting Orientation	Vertical
PCB Thickness	1.6mm
Pitch	0.05inch
Plating Thickness	5um
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Row Spacing	0.1inch
Series	Micro-MaTch
Shrouded	Yes (With)
Termination	Through Hole
Voltage Rating	230V
Width	24mm
Wire/Cable Gauge	28AWG
