Ring tongue terminal for 14-16 AWG wire, featuring a copper body with tin plating. This insulated terminal, with a blue nylon insulation, offers a straight, free-hanging mount and a 3.81mm insulation diameter. Rated for 300V AC, it has a 17.86mm length and a 3.68mm stud diameter suitable for M3.5 studs. The component is RoHS compliant and supplied loose piece.
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 8-320561-1 technical specifications.
General
Body Material
Copper
Body Plating
Tin
Color
Blue
Contact Material
Copper
Contact Plating
Tin
Depth
6.35mm
ELV
Compliant
Finish
Tin
Government Qualified
No
Heavy Duty
No
Insulated Wire Support
Yes
Insulation
Insulated
Insulation Color
Blue
Insulation Diameter
3.81mm
Insulation Material
Nylon
Lead Free
Lead Free
Length
17.86mm
Material
Copper
Mount
Free Hanging
Number of Holes
1
Orientation
Straight
Package Quantity
100
Packaging
Loose Piece
Plating
Tin
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sealable
No (Without)
Series
PIDG
Stud Diameter
3.68mm
Stud Size
M3.5
Termination
Crimp
Thickness
0.031inch
Tongue Thickness
0.79mm
Voltage Rating (AC)
300V
Wire Gauge (Max)
14AWG
Wire Gauge (Min)
16AWG
Wire/Cable Diameter
0.15inch
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 8-320561-1 Datasheet
Download the complete datasheet for TE Connectivity 8-320561-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

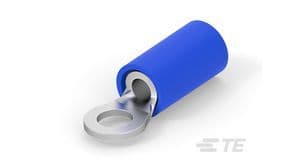

Product Images
