Insulated ring terminal for wire gauges 16-22 AWG, featuring a copper body with tin plating and a nylon insulation in red. This free-hanging terminal has a voltage rating of 300V, a stud diameter of 3.68mm (M3.5), and a crimp termination. It includes insulated wire support and measures 0.85 inches in length with a 6.35mm width. RoHS compliant and ELV compliant.
Voltage Rating300V
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 8-34541-1 technical specifications.
General
Body Material
Copper
Body Plating
Tin
Color
Red
Contact Material
Copper
Contact Plating
Tin
Depth
6.35mm
ELV
Compliant
Government Qualified
No
Heavy Duty
No
Insulated Wire Support
Yes
Insulation
Insulated
Insulation Color
Red
Insulation Diameter
0.14inch
Insulation Material
Nylon
Lead Free
Not Applicable
Length
0.85inch
Material
Copper
Mount
Free Hanging
Number of Holes
1
Package Quantity
100
Packaging
Loose Piece
Plating
Tin
Plating Thickness
2.54um
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
PIDG
Stud Diameter
3.68mm
Stud Size
M3.5
Terminal Material
Copper
Termination
Crimp
Tongue Thickness
0.79mm
Voltage Rating
300V
Width
6.35mm
Wire Gauge (Max)
22AWG
Wire Gauge (Min)
16AWG
Wire/Cable Diameter
3.56mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 8-34541-1 Datasheet
Download the complete datasheet for TE Connectivity 8-34541-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

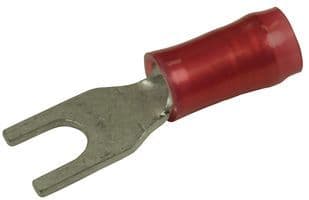

Product Images
