Ring tongue terminal for 10-12 AWG wire, featuring a copper body with tin plating for enhanced conductivity and corrosion resistance. This insulated terminal, with a yellow nylon insulation, offers a straight orientation and a stud diameter of 0.39 inches. Designed for crimp termination, it has a voltage rating of 300V AC and a length of 35.92mm. The terminal supports insulated wire and is RoHS compliant.
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 8-35112-1 technical specifications.
General
| Body Material | Copper |
| Body Plating | Tin |
| Color | Yellow |
| Contact Material | Copper |
| Contact Plating | Tin |
| Depth | 15.06mm |
| ELV | Compliant |
| Finish | Tin |
| Government Qualified | No |
| Heavy Duty | No |
| Insulated Wire Support | Yes |
| Insulation | Insulated |
| Insulation Color | Yellow |
| Insulation Diameter | 6.35mm |
| Insulation Material | Nylon |
| Lead Free | Not Applicable |
| Length | 35.92mm |
| Material | Copper |
| Mount | Free Hanging |
| Number of Holes | 1 |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Loose Piece |
| Plating | Tin |
| Plating Thickness | 2.54um |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | PIDG |
| Stud Diameter | 0.39inch |
| Termination | Crimp |
| Tongue Thickness | 1.02mm |
| Voltage Rating (AC) | 300V |
| Wire Gauge (Max) | 10AWG |
| Wire Gauge (Min) | 12AWG |
| Wire/Cable Diameter | 6.35mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 8-35112-1 Datasheet
Download the complete datasheet for TE Connectivity 8-35112-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

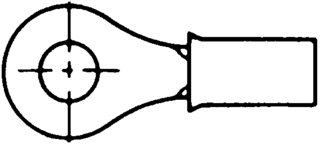

Product Images
