Wire-to-wire receptacle connector, featuring 6 positions and 6 contacts for signal applications. This straight, free-hanging connector utilizes female socket contacts with a 5mm pitch and 0.197-inch row spacing. Constructed with PBT insulation, it operates within a -40°C to 248°C temperature range and offers IP67 sealing. Termination is via crimp, with a mating tab width of 0.11 inches.
MountingFree Hanging
PolarityNo
Quick Jump:
Technical Specifications
TE Connectivity 8-968970-1 technical specifications.
General
Circuit Application
Signal
Color
Blue
Connector System
Wire-to-Wire
Contact Type
Female Socket
Depth
23.5mm
ELV
Compliant
Gender
Female
Height
24mm
Hybrid Connector
No
Insulation Material
PBT
Length
0.63inch
Mating Tab Width
0.11inch
Max Operating Temperature
248°C
Min Operating Temperature
-40°C
Mount
Free Hanging
Number of Contacts
6
Number of Positions
6
Number of Rows
2
Orientation
Straight
Package Quantity
2400
Packaging
Carton
Pitch
5mm
Polarized
No
Primary Type
RECEPTACLE
Radiation Hardening
No
Ratings
IP67
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
0.197inch
Sealable
No (Without)
Series
MCP
Serviceable
No
Strain Relief
No (Without)
Termination
Crimp
Width
0.63inch
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 8-968970-1 Datasheet
Download the complete datasheet for TE Connectivity 8-968970-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

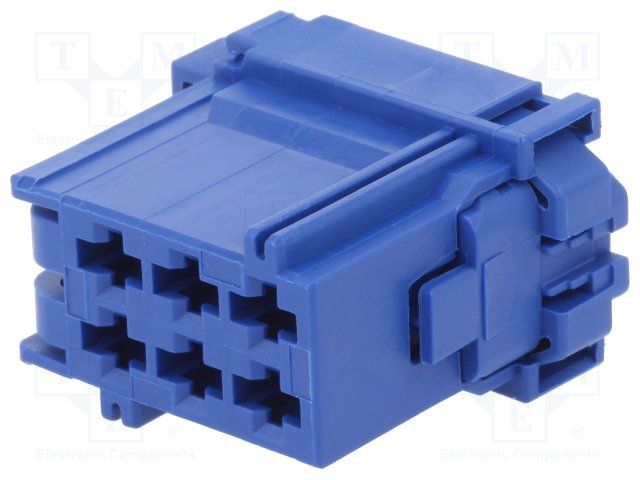

Product Images
