Unshrouded Header, 16 positions, 2.54mm pitch, straight orientation, male pin contact type. Features 3A current rating, 5A contact current rating, gold plated contacts with tin plating, and bronze contact material. Housing is PBT insulation, green color, with a UL94 V-0 flammability rating. Designed for through-hole mounting with a maximum operating temperature of 105°C.
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 826632-8 technical specifications.
General
Board Standoff
No (Without)
Color
Green
Contact Current Rating
5A
Contact Finish - Mating
GOLD
Contact Gender
Male
Contact Material
Bronze
Contact Mating Length
6.7mm
Contact Plating
Gold, Tin
Contact Post Length
0.1259inch
Contact Protection
No (Without)
Contact Shape
Square
Contact Type
Male Pin
Current Rating
3A
Depth
5mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gasket
No (Without)
Gender
Male
High Speed Serial Data Connector
No
High Temperature Housing
No
Housing Color
Green
Insulation Material
PBT
Keyed
No
Lead Pitch
2.54mm
Length
20.32mm
Mating Alignment
No (Without)
Mating Connector Lock
No (Without)
Max Operating Temperature
105°C
Min Operating Temperature
-65°C
Mount
Through Hole
Number of Contacts
16
Number of Poles
8
Number of Positions
16
Number of Rows
2
Orientation
Straight
Package Quantity
504
Packaging
Box
PCB Mount Retention
Without
PCB Mounting Orientation
Vertical
Pin Length
6.7mm
Pitch
2.54mm
Plating Thickness
0.8um
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
2.54mm
Selectively Loaded
No (Without)
Series
AMPMODU MOD II
Stabilizers
No (Without)
Strain Relief
No (Without)
Termination
Through Hole
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 826632-8 Datasheet
Download the complete datasheet for TE Connectivity 826632-8 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

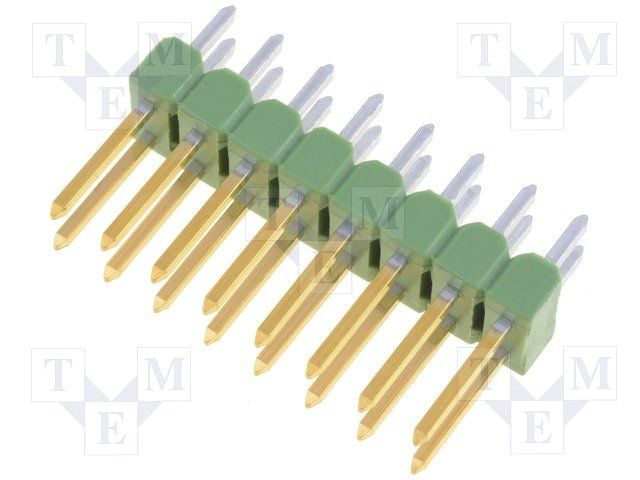

Product Images
