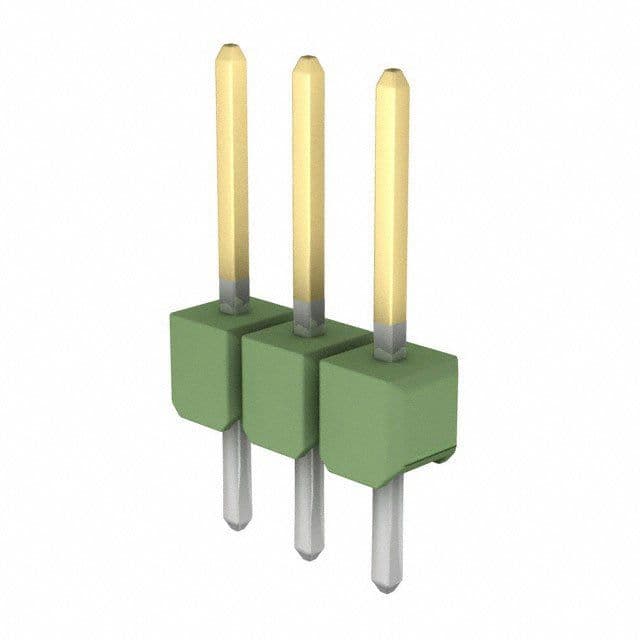

3-position, single-row shrouded header for board-to-board applications. Features straight, through-hole termination with a 2.54mm pitch. Male pin contacts made of bronze with gold and tin plating, offering a 3A current rating. Housing constructed from green PBT insulation, rated UL94 V-0, and operates within a -65°C to 105°C temperature range.
Current Rating3A
MountingStraddle Mount
Quick Jump:
Technical Specifications
TE Connectivity 826646-3 technical specifications.
General
Board Standoff
No (Without)
Color
Green
Contact Finish - Mating
GOLD
Contact Gender
Male
Contact Material
Bronze
Contact Mating Length
5.8mm
Contact Plating
Gold, Tin
Contact Post Length
0.1259inch
Contact Protection
No (Without)
Contact Shape
Square
Contact Type
Male Pin
Current Rating
3A
Depth
2.5mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gasket
No (Without)
High Speed Serial Data Connector
No
High Temperature Housing
No
Housing Color
Green
Insulation Color
Green
Insulation Material
PBT
Keyed
No
Length
7.62mm
Mating Alignment
No (Without)
Mating Connector Lock
No (Without)
Max Operating Temperature
105°C
Min Operating Temperature
-65°C
Mount
Straddle Mount
Number of Contacts
3
Number of Positions
3
Number of Rows
1
Orientation
Straight
Package Quantity
2000
Packaging
Carton
PCB Mount Retention
Without
PCB Mounting Orientation
Vertical
Pitch
2.54mm
Plating Thickness
3um
Radiation Hardening
No
RoHS Compliant
Yes
Row Spacing
2.54mm
Selectively Loaded
No (Without)
Series
AMPMODU MOD II
Stabilizers
No (Without)
Strain Relief
No (Without)
Termination
Through Hole
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 826646-3 Datasheet
Download the complete datasheet for TE Connectivity 826646-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
