3-position, 1-row male pin header with 2.54mm pitch. Features 5A contact current rating and 3A overall current rating. Contacts are made of bronze with tin plating and a mating length of 6.7mm. Insulation material is PBT with a UL94 V-0 flammability rating, and the housing is green. Designed for through-hole mounting with a vertical PCB mounting orientation.
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 826926-3 technical specifications.
General
Board Standoff
No (Without)
Color
Green
Contact Current Rating
5A
Contact Finish - Mating
TIN
Contact Gender
Male
Contact Material
Bronze
Contact Mating Length
6.7mm
Contact Plating
Tin
Contact Post Length
0.1259inch
Contact Protection
No (Without)
Contact Shape
Square
Contact Style
Pin
Contact Type
Male Pin
Current Rating
3A
Depth
2.5mm
Flammability Rating
UL94 V-0
Gasket
No (Without)
High Speed Serial Data Connector
No
High Temperature Housing
No
Housing Color
Green
Insulation Color
Green
Insulation Material
PBT
Keyed
No
Lead Length
3.19786mm
Length
7.62mm
Mating Alignment
No (Without)
Mating Connector Lock
No (Without)
Max Operating Temperature
105°C
Min Operating Temperature
-65°C
Mount
Through Hole
Number of Contacts
3
Number of Positions
3
Number of Rows
1
Orientation
Straight
Package Quantity
2000
Packaging
Carton
PCB Mount Retention
Without
PCB Mounting Orientation
Vertical
Pitch
2.54mm
Plating Thickness
2um
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
2.54mm
Selectively Loaded
No (Without)
Series
AMPMODU MOD II
Stabilizers
No (Without)
Strain Relief
No (Without)
Termination
Through Hole
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 826926-3 Datasheet
Download the complete datasheet for TE Connectivity 826926-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

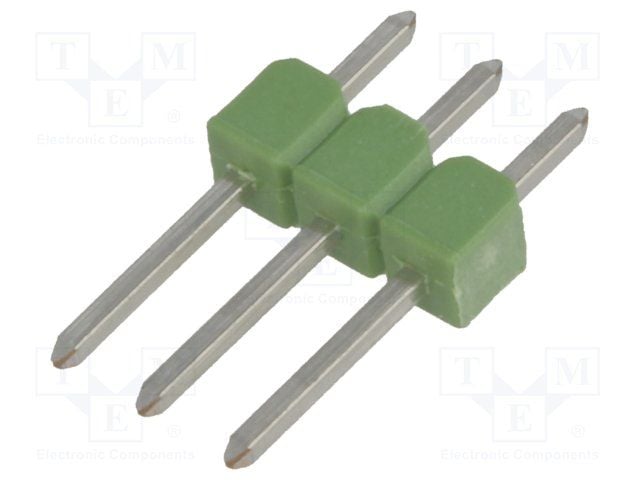

Product Images
