3-position, 1-row male pin header for wire-to-board applications. Features a 2.54mm pitch and straight, through-hole termination with tin-plated bronze contacts. Designed for signal applications with a mating connector lock and mating alignment. Compliant with ELV and RoHS standards, with a UL94 V-0 flammability rating.
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 828548-3 technical specifications.
General
Boss
No (Without)
Circuit Application
Signal
Color
Natural
Contact Gender
Male
Contact Material
Bronze
Contact Mating Length
5.2mm
Contact Plating
Tin
Contact Post Length
0.114inch
Contact Shape
Round
Contact Style
Pin
Contact Type
Male Pin
Depth
4.9mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Male
Height
0.34inch
Housing Color
Natural
Lead Length
2.8956mm
Length
7.12mm
Mating Alignment
Yes (With)
Mating Connector Lock
Yes (With)
Mount
Through Hole
Mounting Ears
No (Without)
Number of Contacts
3
Number of Positions
3
Number of Rows
1
Orientation
Straight
Package Quantity
1500
Packaging
Carton
PCB Mount Alignment
No (Without)
PCB Mount Retention
Without
PCB Mounting Orientation
Vertical
PCB Thickness
33.02mm
Pitch
2.54mm
Plating
Tin
Plating Thickness
1.3um
Radiation Hardening
No
RoHS Compliant
Yes
Sealable
No (Without)
Selectively Loaded
No (Without)
Series
Amp Quick-Pin
Stackable
No
Tail Length
0.11inch
Termination
Through Hole
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 828548-3 Datasheet
Download the complete datasheet for TE Connectivity 828548-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

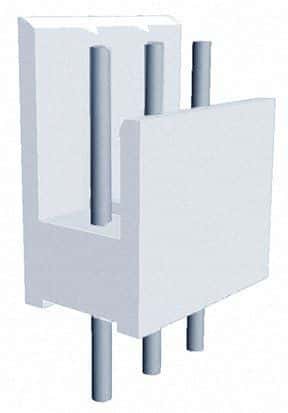

Product Images
