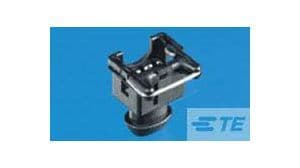

Two-position, 5mm pitch wire-to-wire connector housing for signal applications. Features a straight, free-hanging mount with a natural housing color. Designed for crimp termination with female socket contacts, this polarized housing is sealable and ELV compliant.
MountingFree Hanging
PolarityYes
Quick Jump:
Technical Specifications
TE Connectivity 828657-1 technical specifications.
General
| Circuit Application | Signal |
| Color | Natural |
| Connector System | Wire-to-Wire |
| Contact Type | Female Socket |
| ELV | Compliant |
| Height | 1.102inch |
| Housing Color | Natural |
| Hybrid Connector | No |
| Lead Free | Not Applicable |
| Length | 23.4mm |
| Mating Tab Width | 0.11inch |
| Mount | Free Hanging |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 2800 |
| Packaging | Carton |
| Pitch | 5mm |
| Polarized | Yes |
| RoHS Compliant | Yes |
| Sealable | Yes (With) |
| Series | Junior Power Timer |
| Serviceable | No |
| Strain Relief | No (Without) |
| Termination | Crimp |
| Width | 22mm |
Compliance
| RoHS | Compliant |
