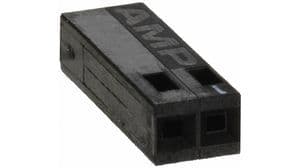

87499-3

2 Pos 2.54mm Pitch Black Header Receptacle, 3A, 250V

2-position, 1-row straight header/receptacle with 2.54mm pitch. Features gold-plated copper male or female contacts rated for 3A and 250V AC. Black housing constructed from UL94 V-0 rated material, operating from -65°C to 105°C. Free hanging, cable mount termination via crimp. Compliant with RoHS and CSA approvals.

Current Rating3A

MountingFree Hanging, Cable

Quick Jump:

Technical Specifications

TE Connectivity 87499-3 technical specifications.

General

Approvals	CSA
Color	Black
Contact Current Rating	3A
Contact Material	Copper
Contact Plating	Gold
Contact Type	Male or Female
Current Rating	3A
Depth	15.24mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Receptacle
Height	0.14inch
Housing Color	Black
Lead Free	Lead Free
Length	0.21inch
Mating Alignment	No (Without)
Mating Connector Lock	No (Without)
Max Operating Temperature	105°C
Min Operating Temperature	-65°C
Max Voltage Rating (AC)	250V
Mount	Free Hanging, Cable
Number of Contacts	2
Number of Positions	2
Number of Rows	1
Orientation	Straight
Package Quantity	1
Packaging	Bulk
Pitch	2.54mm
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Row Spacing	0.1inch
Series	AMPMODU MOD IV
Strain Relief	No (Without)
Termination	Crimp
Voltage Rating (AC)	250V
Width	3.56mm
